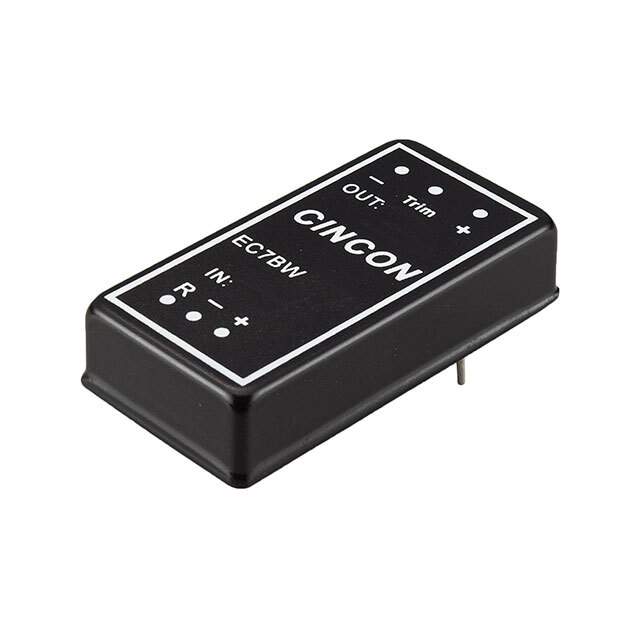

Same model may have multiple batches, images only for reference.

EC7BW-24D15N

Name: EC7BW-24D15N
Brand: Cincon Electronics Co. LTD
SKU: 1350668
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EC7BW-24D15N
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 666mA, 666mA 9V - 36V Input
Datasheet	EC7BW-24D15N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	EC7BW (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	666mA, 666mA
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial) , Railway
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active Low
Approval Agency	CE, cURus
Standard Number	50155; 60950-1
Base Product Number	EC7BW
Standard Package	12
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350668-EC7BW-24D15N
Ultra Librarian 3D Model	Ultra Librarian EC7BW-24D15N CAD Model

Alternative Products

Description

The 1350668-EC7BW-24D15N is a DC DC converter designed for ITE (Commercial) and railway applications.

Application: ITE (Commercial) and Railway
Type: Isolated Module
Package Size: 6-DIP Module
Power Output: 20W
Voltage Isolation: 1.5kV
Temperature Range: -40°C to 85°C (with derating)
Features: Remote On/Off, OCP, OVP, SCP, and UVLO
Outputs: 2
Current Output: 666mA each
Voltage Input: 9V to 36V
Voltage Output: 15V and -15V
Mounting Type: Through Hole
