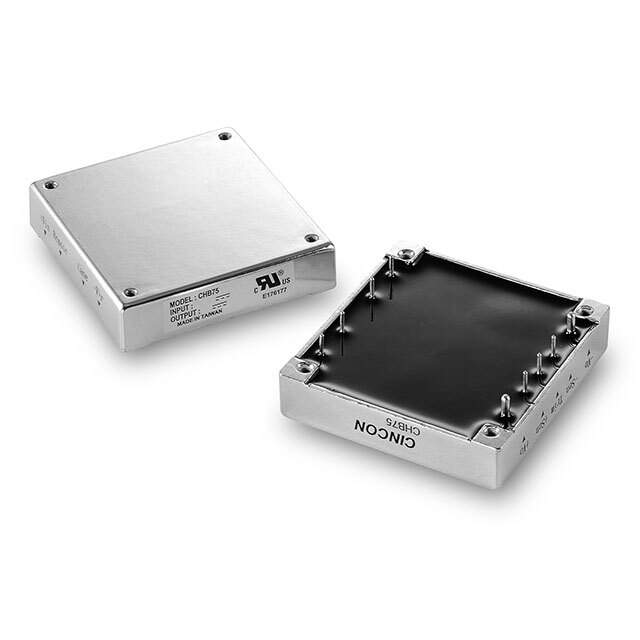

CHB75-24S05N

Name: CHB75-24S05N
Brand: Cincon Electronics Co. LTD
SKU: 1351690
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CHB75-24S05N
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 75W / Isolated Module DC DC Converter 1 Output 5V 15A 18V - 36V Input
Datasheet	CHB75-24S05N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	CHB75 (75W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	15A
Power (Watts)	75 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	84%
Mounting Type	Through Hole
Package / Case	Half Brick
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package	Half Brick
Control Features	Enable, Active Low
Approval Agency	CE, cURus
Standard Number	60950-1
Base Product Number	CHB75
Standard Package	12
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351690-CHB75-24S05N
Ultra Librarian 3D Model	Ultra Librarian CHB75-24S05N CAD Model

Alternative Products

Description

The CHB75 (75W) isolated module is a power supply board mount DC-DC converter with remote on/off, OCP, OTP, OVP, SCP, and UVLO features.

Type: Isolated Module, DC-DC Converter
Features: Remote On/Off, OCP, OTP, OVP, SCP, and UVLO
Package Size: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Application: ITE (Commercial)
Voltage - Isolation: 1.5 kV
Number of Outputs: 1
Current - Output (Max): 15A
Voltage - Input: 18V to 36V
Voltage - Output: 5V
Efficiency: 84%
Mounting Type: Through Hole
Package / Case: Half-Brick
Approvals: CE, cURus
Standard Number: 60950-1
