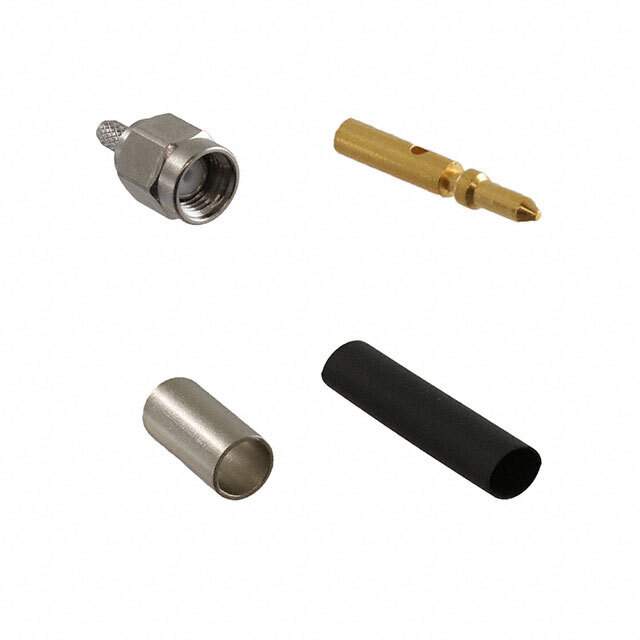

141-0403-012 Real Image
Same model may have multiple batches, images only for reference.

141-0403-012

Part No 141-0403-012
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA PLUG STR 50 OHM CRIMP / SMA Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder
Datasheet
141-0403-012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Cinch Connectivity Solutions Johnson
Package Bulk
Connector Style SMA
Connector Type Plug, Male Pin
Contact Termination Crimp or Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-161, 174, 188, 316, LMR-100
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Contact, 1 Sleeve
Body Material Stainless Steel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 250 V
Mating Cycles 500
Base Product Number 141-0403
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names J875
Standard Package 25
Win Source Part Number 1228874-141-0403-012
Ultra Librarian 3D Model Ultra Librarian 141-0403-012 CAD Model

Description

The Cinch Connectivity Solutions Johnson 1228874-141-0403-012 is an SMA connector plug with a male pin.

  • Manufacturer: Cinch Connectivity Solutions Johnson
  • Connector Type: SMA Connector Plug
  • Pin Gender: Male
  • Fastening Type: Threaded
  • Termination: Crimp/Solder
  • Voltage Rating: 250V
  • Frequency Range: Up to 12.4 GHz
  • Impedance: 50 Ohm
  • Material: Stainless Steel
  • Shield Termination: Crimp
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Number of Pieces: 3 (Connector, Contact, Sleeve)
  • Mounting: Free-Hanging (In-Line)
  • ECCN: EAR99
  • HTSUS: 8536.69.4010
