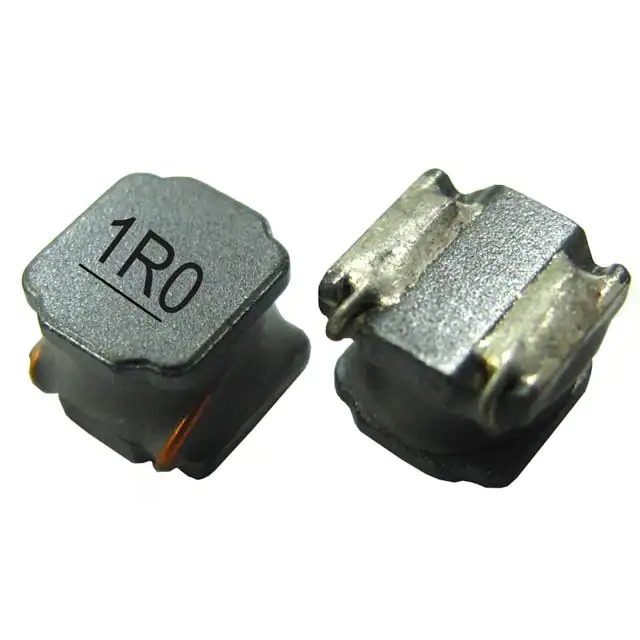

Same model may have multiple batches, images only for reference.
BWVF003030123R3T00 Chilisin
Same model may have multiple batches, images only for reference.

BWVF003030123R3T00

Part No BWVF003030123R3T00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
BWVF003030123R3T00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BWVF
Package Tape & Reel
Product Status Active
Type -
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 1.62 A
Current - Saturation (Isat) 1.65A
Shielding Shielded
DC Resistance (DCR) 130mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 1212
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370357-BWVF003030123R3T00
Ultra Librarian 3D Model Ultra Librarian BWVF003030123R3T00 CAD Model

Description

The Chilisin Electronics BWVF003030123R3T00 is a surface mount fixed inductor in the 1212 (3030 Metric) package.

  • Package / Case: 1212 (3030 Metric)
  • Size / Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Height: 0.047" (1.20mm)
  • Material - Core: Ferrite
  • Inductance: 3.3 µH
  • Current Rating (Max): 1.62 A
  • DC Resistance (DCR): 130mOhm
  • Shielding: Shielded
  • Tolerance: ±30%
  • Operating Temperature: -55°C ~ 125°C
  • Status: Active
  • Series: BWVF
  • Application: Applications in the electronics industry
