Same model may have multiple batches, images only for reference.

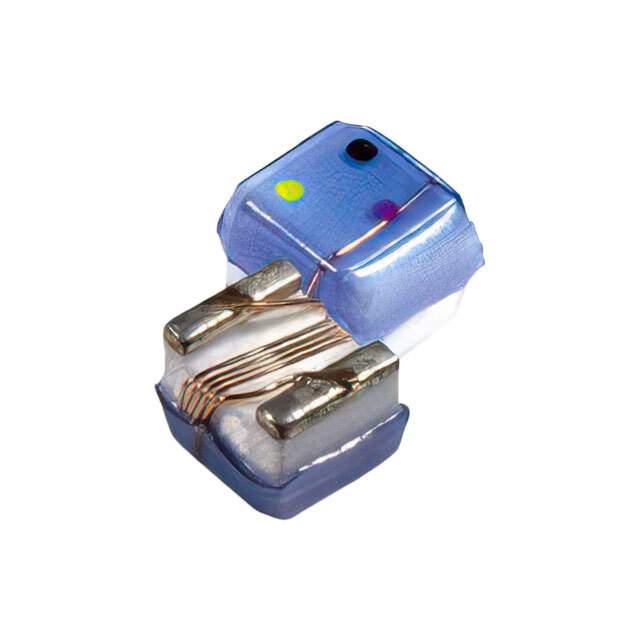

BWCS00292821R22G00 Real Image
Same model may have multiple batches, images only for reference.

BWCS00292821R22G00

Part No BWCS00292821R22G00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR RF / 220 nH Unshielded Drum Core, Wirewound Inductor 500 mA 840mOhm Max 1008 (2520 Metric)
Datasheet
BWCS00292821R22G00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BWCS
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 220 nH
Tolerance ±2%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 840mOhm Max
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 700MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max) 0.083" (2.10mm)
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1341200-BWCS00292821R22G00
Ultra Librarian 3D Model Ultra Librarian BWCS00292821R22G00 CAD Model

Description

The Chilisin BWCS00292821R22G00 is a high-quality inductor that is designed to offer a high level of performance and reliability.

  • Manufacturer: Chilisin
  • Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • Packaging: Tape and Reel
  • Dimensions: 0.115" L x 0.110" W (2.92mm x 2.79mm)
  • Inductance: 220 nH
  • Temperature Range: -40°C ~ 125°C
