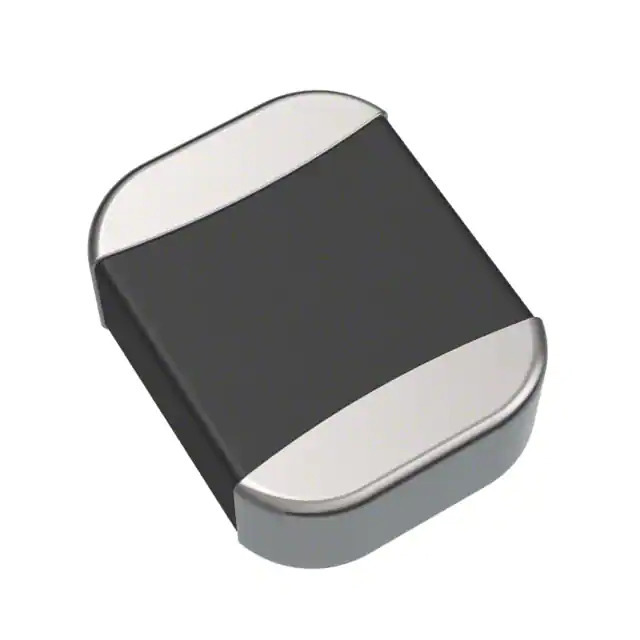

BDCD002016102R2MS1 Chilisin
Same model may have multiple batches, images only for reference.

BDCD002016102R2MS1

Part No BDCD002016102R2MS1
Manufacturer Chilisin
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.6A 204MOHM SMD
Datasheet
BDCD002016102R2MS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BDCD
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 2.4A
Shielding Shielded
DC Resistance (DCR) 204mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370354-BDCD002016102R2MS1
Ultra Librarian 3D Model Ultra Librarian BDCD002016102R2MS1 CAD Model

Description

The Chilisin Electronics BDCD002016102R2MS1 is a surface mount fixed inductor in the 0806 (2016 Metric) package.

  • Manufacturer: Chilisin Electronics
  • Mounting Type: Surface Mount
  • Package Size: 0806 (2016 Metric)
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.039" (1.00mm)
  • Core Material: Molded Core
  • Inductance: 2.2 µH
  • Current Rating: 1.6 A
  • DC Resistance: 204mOhm
  • Shielding: Shielded
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Series: BDCD
  • Product Status: Active
