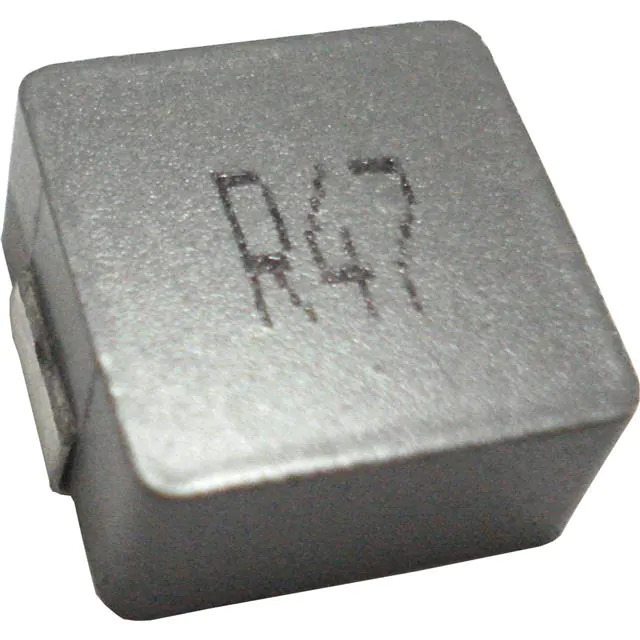

Same model may have multiple batches, images only for reference.
AMRU00060630220MA1 Chilisin
Same model may have multiple batches, images only for reference.

AMRU00060630220MA1

Part No AMRU00060630220MA1
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
AMRU00060630220MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series AMRx
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 145mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.287" L x 0.268" W (7.30mm x 6.80mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370445-AMRU00060630220MA1
Ultra Librarian 3D Model Ultra Librarian AMRU00060630220MA1 CAD Model

Description

The Chilisin Electronics 1370445-AMRU00060630220MA1 is a drum core, wirewound fixed inductor with a nonstandard package.

  • Temperature Range: -40°C ~ 125°C
  • Inductance: 22 µH
  • Current Rating: 3 A
  • Current Saturation: 3.5A
  • Shielding: Shielded
  • DC Resistance (Max): 145mOhm maximum
  • Application: Automotive
  • AEC-Q200: Yes
