Same model may have multiple batches, images only for reference.

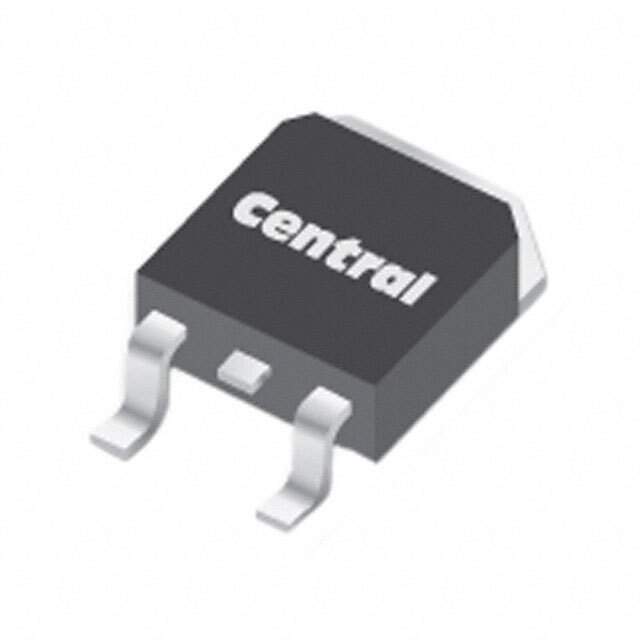

CUDD8-02 TR13 Real Image
Same model may have multiple batches, images only for reference.

CUDD8-02 TR13

Part No CUDD8-02 TR13
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 8A D2PAK
Datasheet
CUDD8-02 TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 975mV @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 5μA @ 200V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package D2PAK
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 1030830-CUDD8-02 TR13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CUDD8-02 TR13 CAD Model

Description

The Central Semiconductor Corp. CUDD8-02 TR13 is a standard diode designed for use in discrete semiconductor products and is currently active in the market.

  • Maximum DC Reverse Voltage: 200V
  • Maximum Forward Voltage: 975mV @ 8A
  • Reverse Recovery Time: 25ns
  • Current Reverse Leakage: 5μA @ 200V
  • Capacitance: 80pF @ 4V, 1MHz
  • Operating Temperature Range: -65°C to 150°C
  • Case: D2PAK
  • Speed: Fast Recovery of 200mA (Io)
