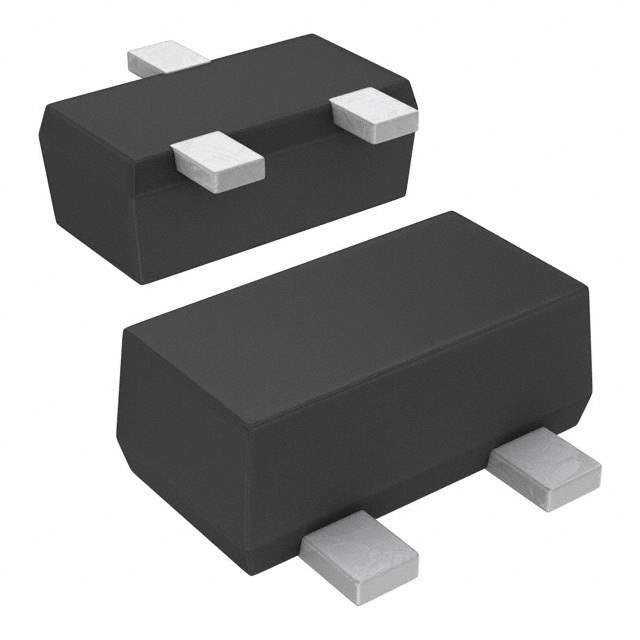

CMUSH2-4S TR Real Image
Same model may have multiple batches, images only for reference.

CMUSH2-4S TR

Part No CMUSH2-4S TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 40V 200MA SOT523
Datasheet
CMUSH2-4S TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 750mV @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 500nA @ 25V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-523
Win Source Part Number 1029747-CMUSH2-4S TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMUSH2-4S TR CAD Model

Description

The CMUSH2-4S TR from Central Semiconductor Corp is a Schottky diode with a maximum reverse voltage of 40V and a forward voltage of 750mV @ 100mA.

  • Maximum Reverse Voltage: 40V
  • Forward Voltage: 750mV @ 100mA
  • Reverse Recovery Time: 5ns
  • Reverse Leakage Current: 500nA @ 25V
  • Mount: surface mount device
  • Package: reel
  • Diode Configuration: 1 pair series connection
  • Average Rectified Current: 200mA per diode
  • Supply and Demand Status: balanced
  • Popularity: medium
