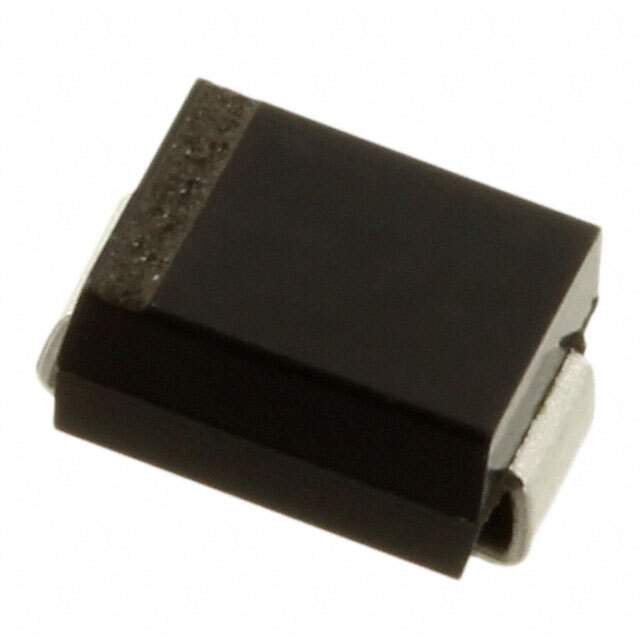

CMSH3-20M TR13 Real Image
Same model may have multiple batches, images only for reference.

CMSH3-20M TR13

Part No CMSH3-20M TR13
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 3A SMB
Datasheet
CMSH3-20M TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 550mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 20V
Capacitance @ Vr, F 280pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SMB
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 1029736-CMSH3-20M TR13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMSH3-20M TR13 CAD Model

Description

The Central Semiconductor Corp CMSH3-20M TR13 is a Schottky diode that belongs to the Discrete Semiconductor Products category.

  • Voltage - DC Reverse (Vr) (Max): 20V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 550mV @ 3A
  • Current - Reverse Leakage @ Vr: 500μA @ 20V
  • Capacitance @ Vr, F: 280pF @ 4V, 1MHz
  • Operating Temperature - Junction: -65°C to 150°C
  • Case/Package: SMB
  • Speed (frequency): fast recovery = 200mA (Io)
  • Supply and demand status: balance
