Same model may have multiple batches, images only for reference.

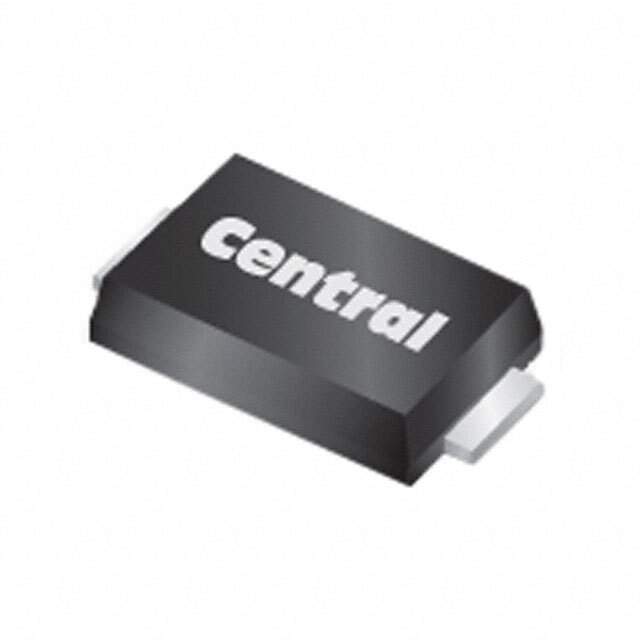

CMSH3-200MFL TR13 PBFREE Real Image
Same model may have multiple batches, images only for reference.

CMSH3-200MFL TR13 PBFREE

Part No CMSH3-200MFL TR13 PBFREE
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 3A SMAFLAT
Datasheet
CMSH3-200MFL TR13 PBFREE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 39 Weeks
Features Diode Schottky 200 V 3A Surface Mount SMAflat
Manufacturer Central Semiconductor Corp
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package DO-221AC, SMA Flat Leads
Case / Package SMAflat
Family Name CMSH3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number CMSH3-200MFLDKR, -CMSH3-200MFL TR13 PBFREE, CMSH3-200MFL TR-ND, -CMSH3-200MFLCT-ND, 1514-CMSH3-200MFLTR13PBFREECT, -CMSH3-200MFL DKR-ND, CMSH3-200MFLTR, -CMSH3-200MFL TR13-DKR-ND, CMSH3-200MFL TR, -1583-CMSH3-200MFLTR13PBFREECT, 1514-CMSH3-200MFLTR13PBFREEDKR, 1514-CMSH3-200MFLTR13PBFREETR, -CMSH3-200MFL TR13, CMSH3-200MFL DKR, -CMSH3-200MFLCT, CMSH3-200MFLCT, -CMSH3-200MFL CT-ND, -CMSH3-200MFLDKR-ND, CMSH3-200MFL CT-ND, -CMSH3-200MFL TR13-DKR, CMSH3-200MFL CT, -CMSH3-200MFL TR13-CT-ND, -CMSH3-200MFLDKR, CMSH3-200MFLCT-ND, -CMSH3-200MFL TR13-ND, CMSH3-200MFL DKR-ND, CMSH3-200MFL TR13 LEAD FREE, CMSH3-200MFLDKR-ND, CMSH3-200MFL TR13, CMSH3-200MFLTR-ND, -1583-CMSH3-200MFLTR13PBFREEDKR
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867002-CMSH3-200MFL TR13 PBFREE
Ultra Librarian 3D Model Ultra Librarian CMSH3-200MFL TR13 PBFREE CAD Model

Description

The Central Semiconductor Corp CMSH3-200MFL TR13 PBFREE is a surface mount diode Schottky with a 200V reverse voltage and 3A forward current.

  • Recovery Speed: less than 500ns
  • Current (Io): greater than 200mA
  • Packaging: 10000 per reel - TR
  • Package Type: DO-221AC, SMA Flat Leads
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 39 weeks
  • REACH: Unaffected
  • ECCN: EAR99
