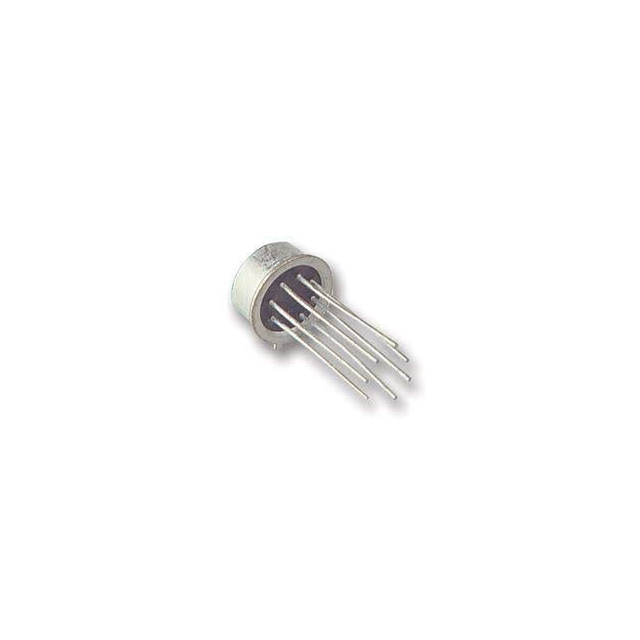

2N3811 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Obsolete
Transistor Type 2 PNP (Dual)
Current - Collector (Ic) (Maximum) 50mA
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) at Ib, Ic 250mV at 1mA, 100μA
Current - Collector Cutoff (Maximum) 10nA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 300 at 1mA, 5V
Maximum Power 600mW
Frequency - Transition 100MHz
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-78-6 Metal Can
Supplier Device Package TO-78-6
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123792-2N3811
Manufacturer Homepage www.semicoa.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3811 CAD Model

Description

The Central Semiconductor Corp 2N3811 is a 2 PNP (Dual) transistor that is commonly used in discrete semiconductor products.

  • Manufacturer: Central Semiconductor Corp
  • Type: 2 PNP (Dual) transistor
  • Frequency Transition: 100MHz
  • Voltage Collector-Emitter Breakdown: 60V
  • Maximum Current Collector: 50mA
  • Package: TO-78-6 metal can
  • Mounting Style: Through-hole
  • Maximum Power: 600mW
  • DC Current Gain: 300 @ 1mA, 5V
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Suitable for: Use in applications that require high frequency and low power consumption
