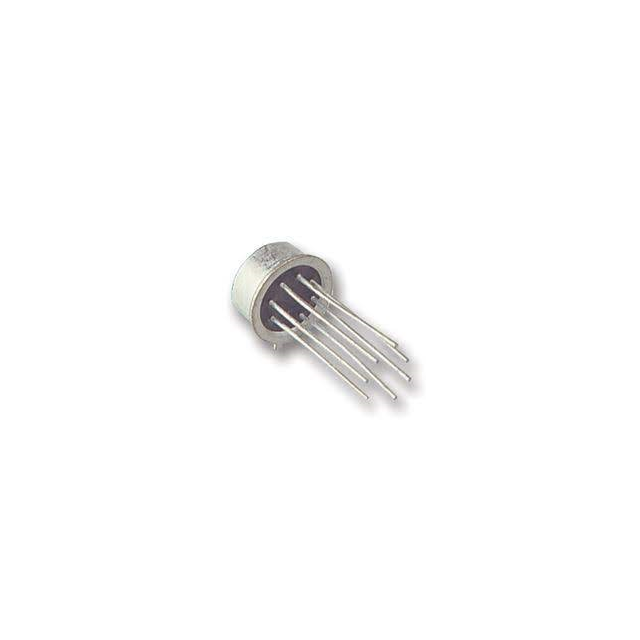

2N3806 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Obsolete
Transistor Type 2 PNP (Dual)
Current - Collector (Ic) (Maximum) 50mA
Voltage - Collector Emitter Breakdown (Maximum) 60V
DC Current Gain (hFE) (Minimum) at Ic, Vce 150 at 1mA, 5V
Maximum Power 600mW
Frequency - Transition 100MHz
Mounting Style Through Hole
Manufacturer Package TO-78-6 Metal Can
Supplier Device Package TO-78-6
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123788-2N3806
Manufacturer Homepage www.centralsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N3806 CAD Model

Description

The Central Semiconductor Corp 2N3806 is a dual PNP transistor designed for use in high-frequency applications.

  • Manufacturer: Central Semiconductor Corp
  • Maximum Collector Current: 50mA
  • Breakdown Voltage: 60V
  • Transition Frequency: 100MHz
  • Mounting Style: Through-Hole
  • Package: TO-78-6 Metal Can
  • Supply and Demand Status: Obsolete, Limited Supply and Demand
