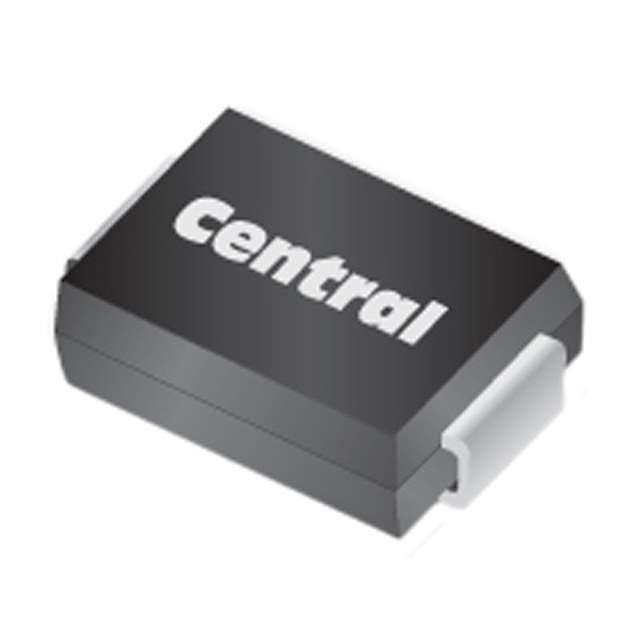

The 1SMC8.5CA is a Transient Voltage Suppressor (TVS) diode designed by Central Semiconductor Corp. It is specifically engineered to protect sensitive electronics from voltage transients that can occur due to events like lightning strikes, inductive load switching, and electrostatic discharge (ESD). It is part of the SMC series known for its robust design and reliable operation in challenging environments.

Applications

• Protection of I/O ports
• Overvoltage protection for sensitive circuits
• Data line protection in communication systems
• AC and DC power line protection
• Protection for microprocessors and memory chips

Features

• Glass passivated junction for enhanced reliability
• Excellent clamping capability to limit overvoltages effectively
• Low incremental surge resistance, minimizing the impact on normal circuit operation
• Very fast response time: Typically less than 1.0 ps from 0 Volts to BV minimum, enabling rapid protection
• Low reverse leakage current (IR typically less than 1 μA above 10 V)
• Guaranteed high temperature soldering: can withstand 260°C for 10 seconds at the terminals
• The plastic material used has UL flammability classification 94V-O

Benefits

• Ensures the reliable performance of electronic equipment by providing robust protection against voltage surges
• Extends the lifespan of vulnerable components by diverting transient energy away from them
• Reduces downtime and maintenance costs associated with component failures due to transient voltages
• Improves overall system reliability and performance in environments prone to voltage transients
• Simple to integrate into existing circuit designs due to its industry-standard package

Specifications

The 1SMC8.5CA has a standoff voltage of 8.5V and a breakdown voltage ranging from 9.44V to 10.4V. It features a peak pulse power capability of 1500W at 10/1000μs. The diode is housed in an SMC (DO-214AB) package, suitable for surface mounting. The operating and storage temperature range spans from -55°C to +150°C.

This TVS diode is particularly suitable for applications where board space is limited but high surge protection is required. Its bidirectional clamping characteristic provides protection against both positive and negative transients. By quickly clamping transient voltages, the 1SMC8.5CA ensures the continued operation and longevity of valuable electronic equipment. It offers a cost-effective solution for enhancing the resilience of electronic systems against transient threats.
