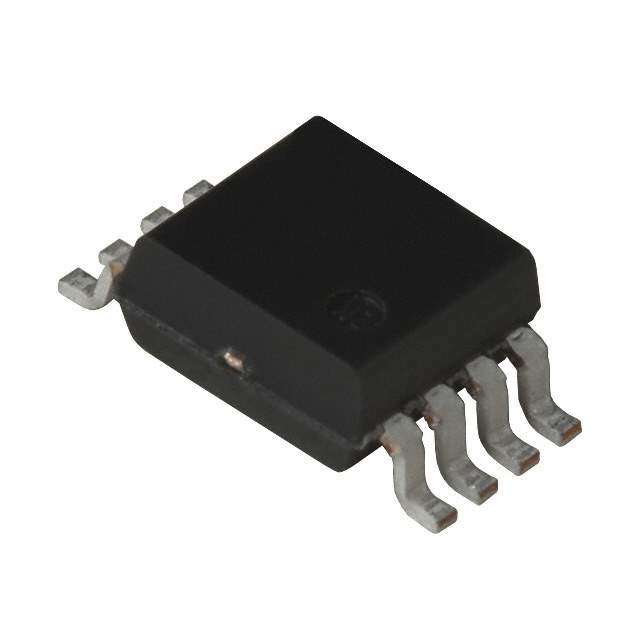

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 1.7GHz to 2GHz
Gain 21dB to 25dB
Noise Figure 6dB to 8dB
RF Type UHF
Supply Voltage - Operating 4.5 V to 5.5 V
Operating Supply Current 40mA to 60mA
Test Frequency 500MHz
Case / Package 8-SO
Win Source Part Number 141935-UPC1678GV-E1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPC1678GV-E1 CAD Model

Description

The UPC1678GV-E1 RF amplifier from CEL is a device with a test frequency of 500MHz. Bold the product name UPC1678GV-E1 and manufacturer CEL.

  • Test Frequency: 500MHz
  • Frequency Range: 1.7GHz to 2GHz
  • Gain: 21dB to 25dB
  • Noise Figure: 6dB to 8dB
  • Supply Voltage Range: 4.5V to 5.5V
  • Status: Obsolete (EOL)
  • Package: 8-SO
  • Category: RF/IF and RFID
  • Operating Supply Current: 40mA to 60mA
  • Manufacturer: CEL

Alternative parts for this amplifier include HMC320MS8GETR and NJG1107KB2-TE1.
