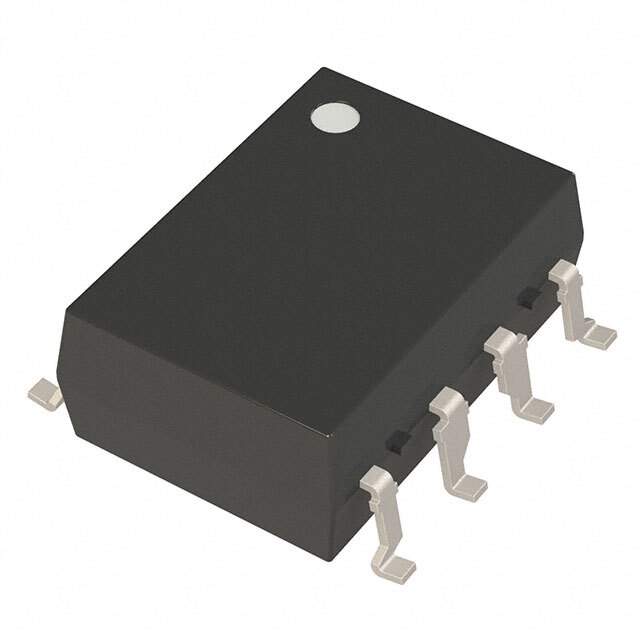

PS9614L-E3 Real Image
Same model may have multiple batches, images only for reference.

PS9614L-E3

Part No PS9614L-E3
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPEN COLL 8SMD GW
Datasheet
PS9614L-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 25mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 8ns
Forward Voltage 1.65V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SMD Gull Wing
Win Source Part Number 042224-PS9614L-E3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS9614L-E3 CAD Model

Description

The CEL 042224-PS9614L-E3 is an obsolete (EOL) isolator with 1 channel and an open collector output type.

  • Product: CEL 042224-PS9614L-E3
  • Status: obsolete (EOL)
  • Channel Count: 1
  • Output Type: open collector
  • Mounting Style: surface mount
  • Case/Package: 8-SMD Gull Wing
  • Data Rate: 10Mbps
  • Forward Voltage: 1.65V
  • Input Type: DC
  • Common Mode Transient Immunity (min): 10kV/μs
  • Propagation Delay tpLH / tpHL (max): 75ns, 75ns
  • Isolation Voltage: 3750Vrms
  • Supply and Demand Status: limited
