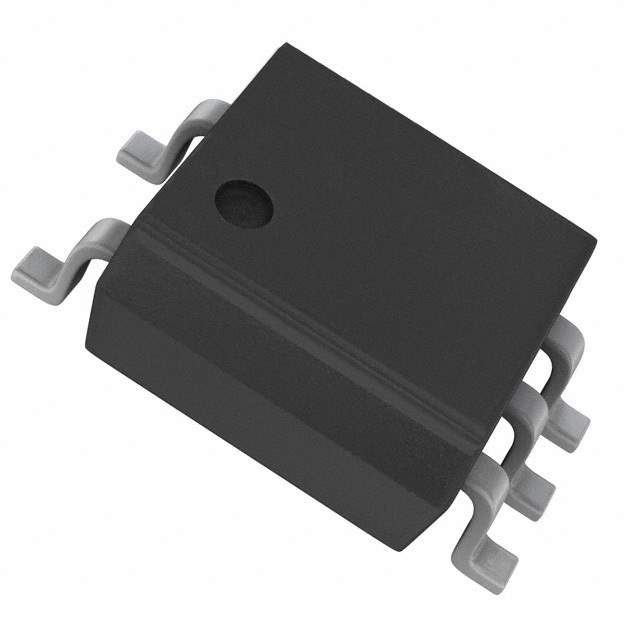

PS9113-F3-AX Real Image
Same model may have multiple batches, images only for reference.

PS9113-F3-AX

Part No PS9113-F3-AX
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPN COLLECTOR 5SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 15kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 15mA
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 750ns, 500ns
Forward Voltage 1.65V
Continuous forward current- Max 25mA
Supply Voltage - Operating 4.5 V to 20 V
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 5-SO
Win Source Part Number 026907-PS9113-F3-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS9113-F3-AX CAD Model

Description

The CEL 5-SO is an Isolator integrated circuit designed to be used in electronic devices.

  • Win Source Part Number: 026907-PS9113-F3-AX
  • Packaging: Reel-TR
  • Market Popularity: medium
  • Supply and Demand Status: balanced
  • Description: reliable and can be used in various electronic devices
  • Common Mode Transient Immunity: 15kV/μs
  • Isolation Voltage: 3750Vrms
