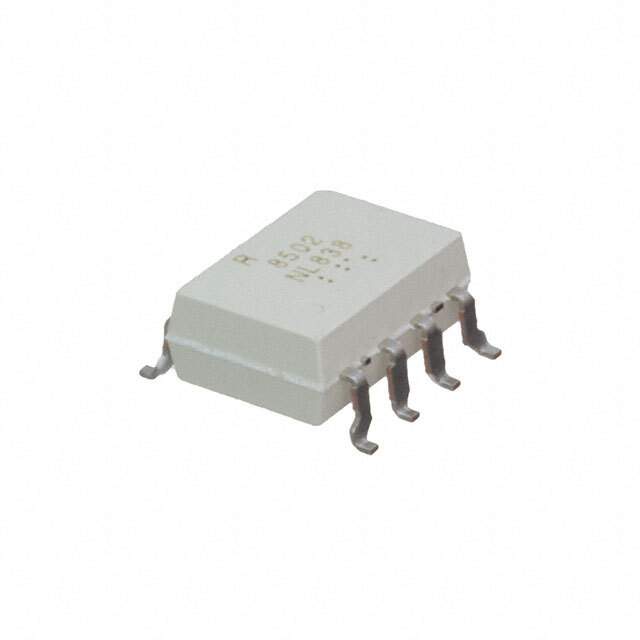

PS8502L3-AX Real Image
Same model may have multiple batches, images only for reference.

PS8502L3-AX

Part No PS8502L3-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 8SMD / Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 8-Pin PDIP SMD Magazine
Datasheet
PS8502L3-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Series NEPOC
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 15% @ 16mA
Turn On / Turn Off Time (Typ) 220ns, 350ns
Input Type DC
Output Type Transistor
Output Voltage MAX 35V
Output Current per Channel 8mA
Voltage - Forward (Vf) (Typ) 1.7V
Current - DC Forward (If) (Maximum) 25mA
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 8-SMD, Gull Wing
Manufacturer Package 8-SMD
Win Source Part Number 792565-PS8502L3-AX
Popularity Medium
Supply and Demand Status Limited
Family Name PS8502L3
Introduction Date October 24, 2008
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS8502L3-AX CAD Model

Description

The CEL PS8502L3-AX is an NEPOC series isolator that comes in an 8-SMD, gull wing package.

  • Voltage - Forward (Vf) (Typ): 1.7V
  • Output Voltage MAX: 35V
  • Output Current per Channel: 8mA
  • Current - DC Forward (If) (maximum): 25mA
  • Current Transfer Ratio (Minimum): 15% @ 16mA
  • Voltage - Isolation: 5000Vrms
  • Turn On / Turn Off Time (typ): 220ns, 350ns
  • Introduction Date: October 24, 2008
  • Supply and Demand Status: Limited
  • Operating Temperature Range: -55°C ~ 100°C
