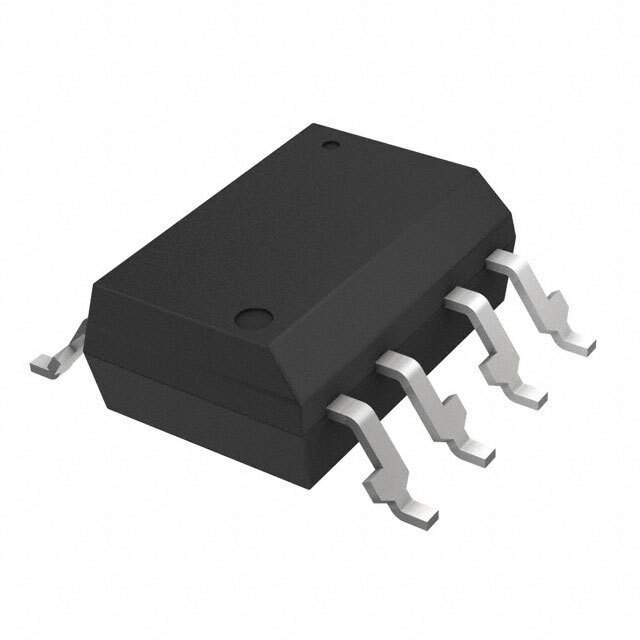

PS8501L2-AX Real Image
Same model may have multiple batches, images only for reference.

PS8501L2-AX

Part No PS8501L2-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 8SMD
Datasheet
PS8501L2-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 15% @ 16mA
Switching Turn-On and Turn-Off Time 220ns, 350ns
Input Type DC
Maximum Output Voltage 35V
Channel Output Current 8mA
Forward Voltage 1.7V
Continuous forward current- Max 25mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 8-SMD
Win Source Part Number 1090204-PS8501L2-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS8501L2-AX CAD Model

Description

The CEL PS8501L2-AX is a product from CEL, an active status manufacturer.

  • Input Type: DC
  • Channels: One
  • Minimum DC Current Transfer Ratio: 15% @ 16mA
  • Channel Output Current: 8mA
  • Continuous Forward Current-Max: 25mA
  • Isolation Voltage: 5000Vrms
  • Switching Turn-On Time: 220ns
  • Switching Turn-Off Time: 350ns
  • Maximum Output Voltage: 35V
  • Forward Voltage: 1.7V
  • Package: 8-SMD
  • Temperature Range: -55°C to 100°C
