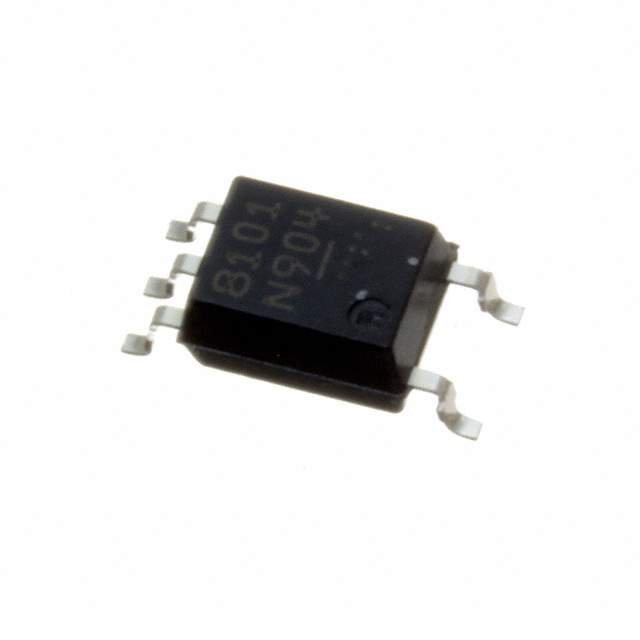

PS8101-AX Real Image
Same model may have multiple batches, images only for reference.

PS8101-AX

Part No PS8101-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 6SO  /  Optoisolator Transistor Output 3750Vrms 1 Channel 5-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr CEL
Series NEPOC
Package Strip
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 15% @ 16mA
Current Transfer Ratio (Max) 35% @ 16mA
Turn On / Turn Off Time (Typ) 500ns, 600ns
Input Type DC
Output Type Transistor
Voltage - Output (Max) 35V
Current - Output / Channel 8mA
Voltage - Forward (Vf) (Typ) 1.7V
Current - DC Forward (If) (Max) 25 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package 5-SOP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names PS8101AX
Standard Package 20
Win Source Part Number 1086025-PS8101-AX
Ultra Librarian 3D Model Ultra Librarian PS8101-AX CAD Model

Description

The PS8101-AX is a high-speed, photovoltaic output type optocoupler that features a high isolation voltage of 3750Vrms.

  • Isolation Voltage: 3750Vrms
  • Applications: industrial automation, digital logic ground isolation, and motor control
  • Output: transistor output
  • Speeds: up to 500ns turn on/off time
  • Protection Features: over-current protection and thermal shutdown
  • Package: 5-SOP package
