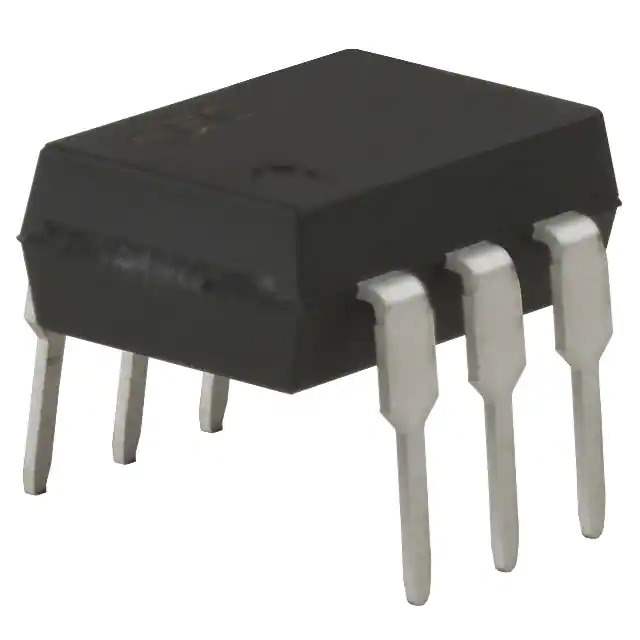

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 150 mA
On-State Resistance (Max) 30 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 657059-PS7141-1B-A
Ultra Librarian 3D Model Ultra Librarian PS7141-1B-A CAD Model

Description

The 657059-PS7141-1B-A is a solid-state relay designed for reliable switching operations.

  • Input Voltage: 1.2VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NC
  • On-State Resistance: 30 Ohms (max)
  • Load Current: 150mA
  • Voltage Load Range: 0V to 400V
  • Mounting: Through-hole
  • Package: 6-DIP
  • Operating Temperature: -55°C to 100°C
  • Status: Obsolete
