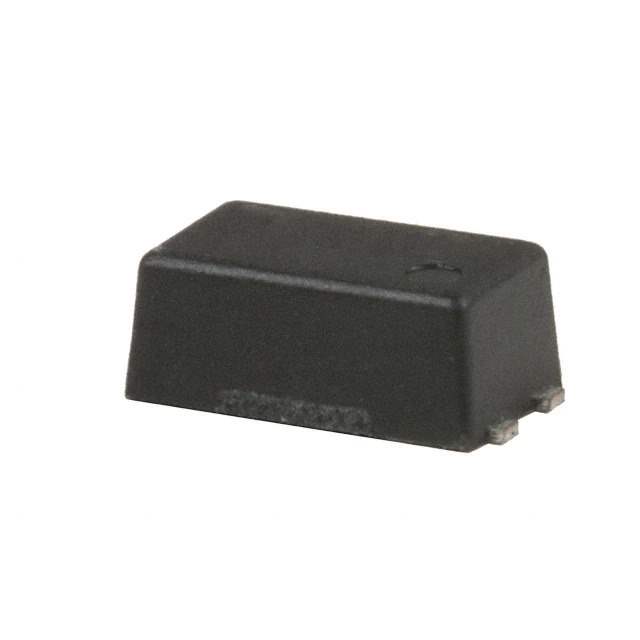

PS2913-1-F3-A Real Image
Same model may have multiple batches, images only for reference.

PS2913-1-F3-A

Part No PS2913-1-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 2.5KV TRANS 4SMD
Datasheet
PS2913-1-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr CEL
Package Tape & Reel
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 2500Vrms
Current Transfer Ratio (Min) 50% @ 1mA
Current Transfer Ratio (Max) 200% @ 1mA
Turn On / Turn Off Time (Typ) 80µs, 50µs
Rise / Fall Time (Typ) 10µs, 10µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 120V
Current - Output / Channel 30mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 4-SMD, Flat Leads
Supplier Device Package 4-Mini-Flat
Standard Package 3,500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 656998-PS2913-1-F3-A
Ultra Librarian 3D Model Ultra Librarian PS2913-1-F3-A CAD Model

Description

The PS2913-1-F3-A is an optoisolator with a photovoltaic output.

  • Input Type: DC
  • Current Transfer Ratio: 50% @ 1mA
  • Forward Voltage: 1.1V
  • Rise/Fall Time: 10μs/10μs
  • Current Output: 30mA
  • Maximum Output Voltage: 120V
  • Mounting Type: surface mount
  • Package: 4-SMD, flat leads
  • REACH Status: affected
  • HTSUS Code: 8541.49.8000
  • Status: obsolete
  • Moisture Sensitivity Level: 1 (unlimited)
  • Temperature Range: -55°C to 100°C
  • Series: CEL
