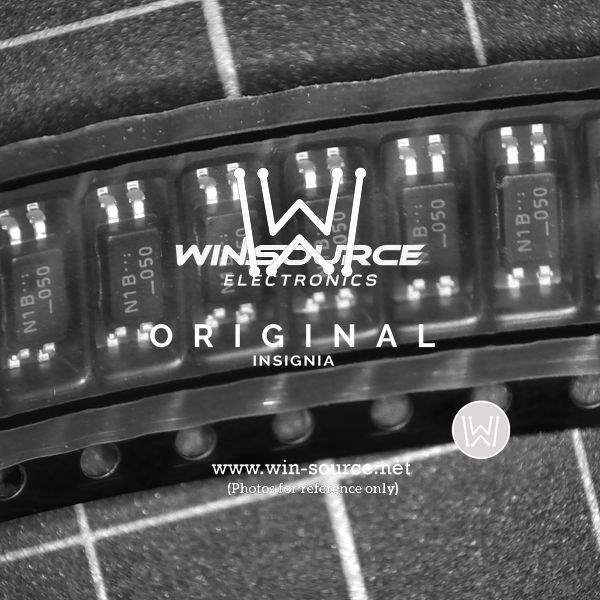

PS2861B-1Y-V-F3-A CEL PS2861B-1Y-V-F3-A Real Image1 PS2861B-1Y-V-F3-A Real Image2
Same model may have multiple batches, images only for reference.
PS2861B-1Y-V-F3-A CEL PS2861B-1Y-V-F3-A Real Image1 PS2861B-1Y-V-F3-A Real Image2
PS2861B-1Y-V-F3-A CEL PS2861B-1Y-V-F3-A Real Image1 PS2861B-1Y-V-F3-A Real Image2
Same model may have multiple batches, images only for reference.

PS2861B-1Y-V-F3-A

Part No PS2861B-1Y-V-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4SO
Datasheet
PS2861B-1Y-V-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 300% @ 5mA
Rise and Fall Time 4μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SOP
Win Source Part Number 281186-PS2861B-1Y-V-F3-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2861B-1Y-V-F3-A CAD Model

Description

The CEL PS2861B-1Y-V-F3-A is an isolator with a minimum DC current transfer ratio of 50 percent @ 5mA and a maximum DC current transfer ratio of 300 percent @ 5mA.

  • Vce saturation: 300mV
  • Isolation voltage: 3750Vrms
  • Forward voltage: 1.1V
  • Channel output current: 50mA
  • Maximum output voltage: 70V
  • Switching turn-on and turn-off time: not specified
  • Rise and fall time: 4μs and 5μs respectively
  • Packaging: 4-SOP case
  • Mounting: SMD (SMT) technology
  • Supply and demand status: balanced
