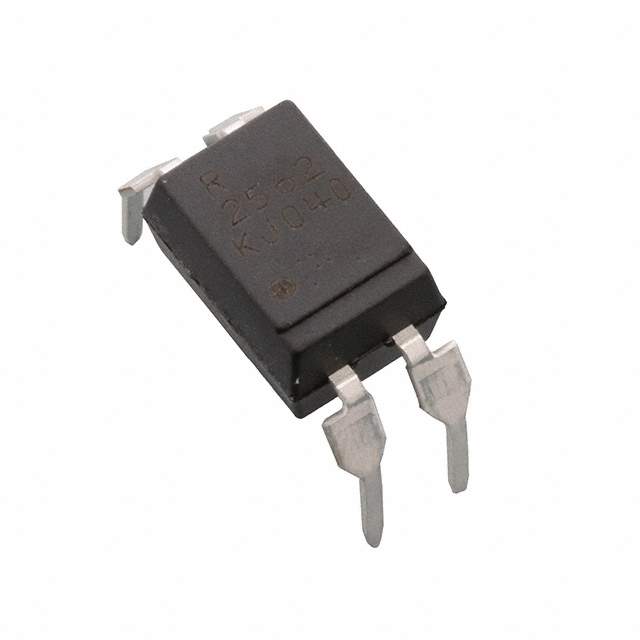

PS2561DL1-1Y-V-A Real Image
Same model may have multiple batches, images only for reference.

PS2561DL1-1Y-V-A

Part No PS2561DL1-1Y-V-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP
Datasheet
PS2561DL1-1Y-V-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 40mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 026876-PS2561DL1-1Y-V-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2561DL1-1Y-V-A CAD Model

Description

The CEL PS2561DL1-1Y-V-A is a through-hole mounted, single channel transistor output type optocoupler.

  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.2V
  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 400% @ 5mA
  • Maximum Output Voltage: 80V
  • Output Current per Channel: 50mA
  • Continuous Forward Current: 40mA
  • Application: Isolator
  • Package: 4-DIP
