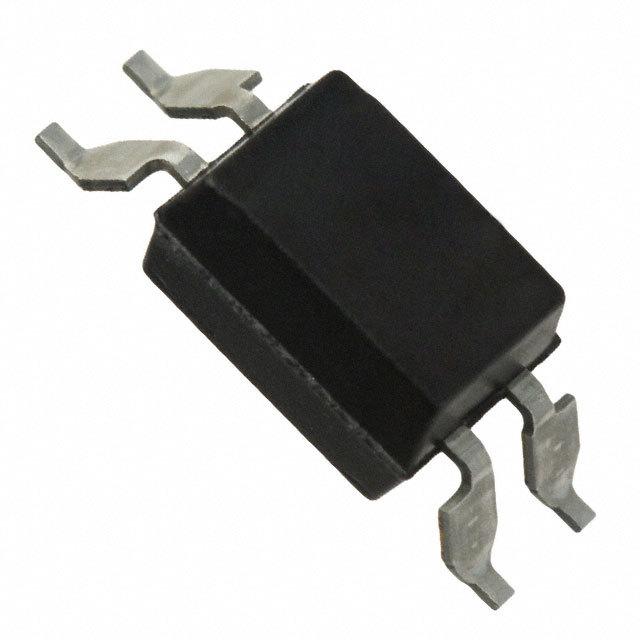

PS2561AL2-1-E3-H-A CEL
Same model may have multiple batches, images only for reference.

PS2561AL2-1-E3-H-A

Part No PS2561AL2-1-E3-H-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4SMD
Datasheet
PS2561AL2-1-E3-H-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Cut Reel
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 160% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 30mA
Forward Voltage 1.2V
Continuous forward current- Max 30mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 126898-PS2561AL2-1-E3-H-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2561AL2-1-E3-H-A CAD Model

Description

The CEL PS2561AL2-1-E3-H-A is an optocoupler that is designed for use in a variety of electronic circuits.

  • Output Type: Transistor
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 80% @ 5mA
  • Maximum DC Current Transfer Ratio: 160% @ 5mA
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 5μs
  • Maximum Output Voltage: 70V
  • Channel Output Current: 30mA
  • Continuous Forward Current-Max: 30mA
  • Temperature Range: -55°C to 100°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
