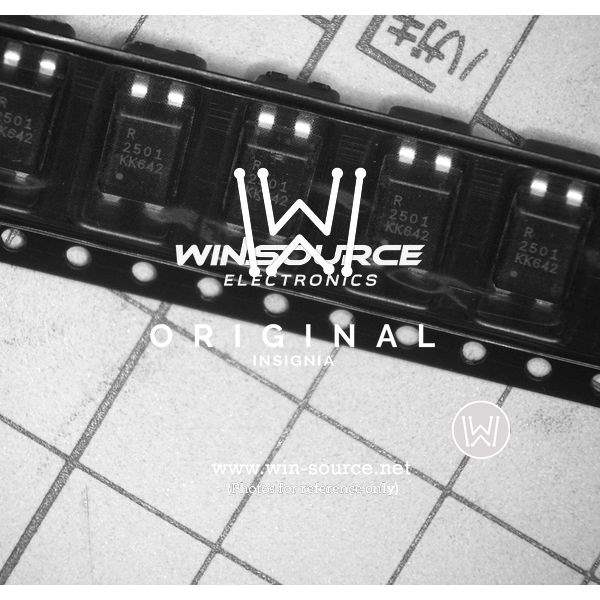

PS2501L-1 Real Image PS2501L-1 Real Image
Same model may have multiple batches, images only for reference.
PS2501L-1 Real Image PS2501L-1 Real Image
PS2501L-1 Real Image PS2501L-1 Real Image
Same model may have multiple batches, images only for reference.

PS2501L-1

Part No PS2501L-1
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4SMD / Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Datasheet
PS2501L-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr CEL
Series NEPOC
Package Tube
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 80% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 3µs, 5µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.17V
Current - DC Forward (If) (Max) 80 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Base Product Number PS2501
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 656773-PS2501L-1
Ultra Librarian 3D Model Ultra Librarian PS2501L-1 CAD Model

Description

The PS2501L-1 is an optoisolator with a photovoltaic output.

  • Output: Photovoltaic
  • Description: GaAs infrared emitting diode optically coupled to a photovoltaic cell.
  • Output Type: Transistor
  • Application: High-density mounting
  • Features: Electrical isolation, High current transfer ratio, Low saturation voltage
  • Application: DC Input
  • Maximum Forward Current: 80 mA
  • Forward Voltage: 1.17V
  • Rise/Fall Time: 3µs/5µs
  • Output Current per Channel: 50mA
  • Voltage Isolation: 5000Vrms
  • Mounting: Surface Mountable
  • Operating Temperature: -55°C to 100°C
  • Status: Obsolete from CEL
