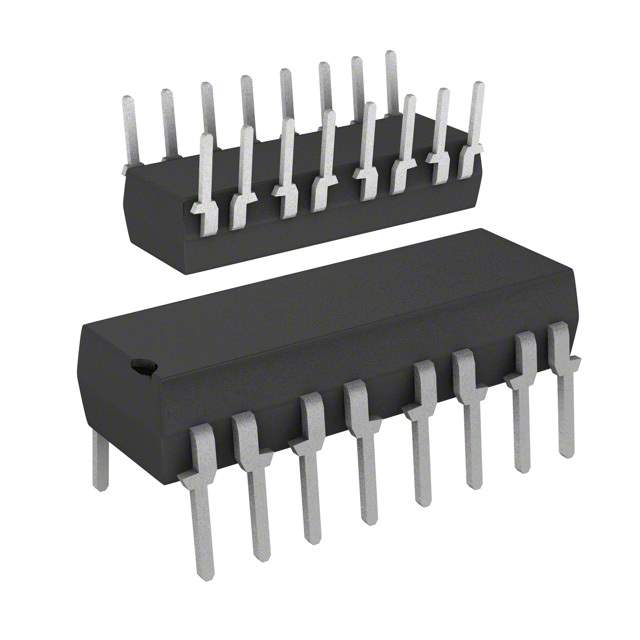

PS2501-4-A CEL PS2501-4-A Real Image PS2501-4-A real image
PS2501-4-A CEL PS2501-4-A Real Image PS2501-4-A real image
Same model may have multiple batches, images only for reference.

PS2501-4-A

Part No PS2501-4-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description DC-IN 4-CH Transistor DC-OUT 16-Pin PDIP Magazine / OPTOISOLATOR 5KV 4CH TRANS 16DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 4
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.17V
Continuous forward current- Max 80mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 026862-PS2501-4-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PS2501-4
Introduction Date November 01, 2001
ECCN EAR99
Country of Origin Japan
Ultra Librarian 3D Model Ultra Librarian PS2501-4-A CAD Model

Description

It has a through-hole mounting and a 16-DIP case/package.

  • Output Type: Transistor
  • Forward Voltage: 1.17V
  • Input Type: DC
  • Channels: 4
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Minimum DC Current Transfer Ratio: 80% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Rise Time: 3μs
  • Fall Time: 5μs
  • Isolation Voltage: 5000Vrms
  • Temperature Range: -55°C to 100°C
  • Status: Common-used part
  • Component Status: Active
  • ECCN: EAR99
  • Country of Origin: Japan
