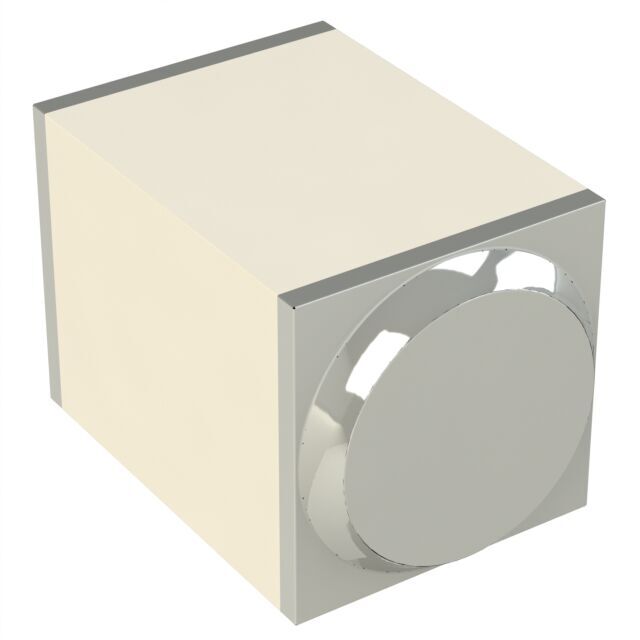

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer CEL
Packaging Bulk
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 180V
Current - Max 50 mA
Capacitance @ Vr, F 1.2pF @ 40V, 100MHz
Resistance @ If, F 750mOhm @ 50mA, 100MHz
Power Dissipation (Max) 3 W
Temperature Range - Operating 175°C (TJ)
Package / Case SQ-MELF
Supplier Device Package MELF
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1479307-L8104
Ultra Librarian 3D Model Ultra Librarian L8104 CAD Model
