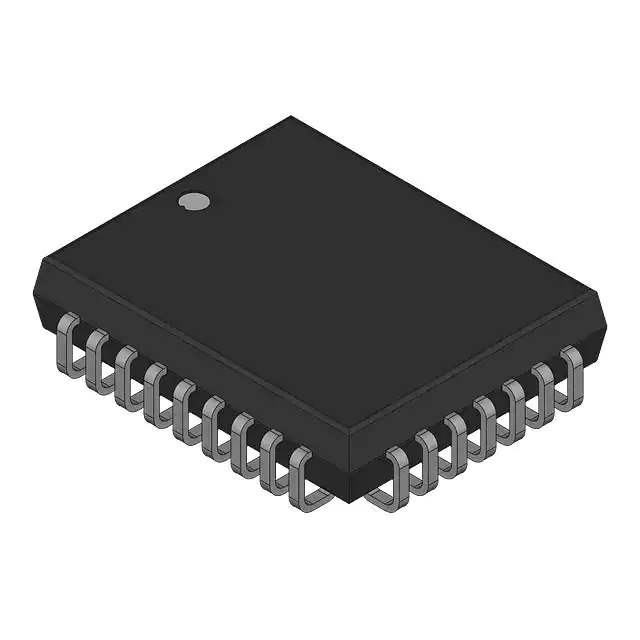

CAT28C16AN-20 Real Image
Same model may have multiple batches, images only for reference.

CAT28C16AN-20

Part No CAT28C16AN-20
Manufacturer Catalyst Semiconductor
Catalog Memory
Description IC EEPROM 16KBIT PARALLEL 32PLCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Catalyst Semiconductor
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 16Kbit
Memory Organization 2K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 10ms
Access Time 200 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 32-LCC (J-Lead)
Supplier Device Package 32-PLCC (13.97x11.43)
Base Product Number CAT28C16
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.32.0051
Win Source Part Number 576313-CAT28C16AN-20
Ultra Librarian 3D Model Ultra Librarian CAT28C16AN-20 CAD Model

Description

The CAT28C16AN-20 is a 16Kbit EEPROM memory IC that is designed for non-volatile storage applications.

  • Voltage Supply Range: 4.5V to 5.5V
  • Memory Size: 16Kbit
  • Access Time: 200 ns
  • Write Cycle Time: 10ms
  • Interface: Parallel
  • Operating Temperature Range: 0°C to 70°C
  • Package: 32-LCC
  • Mounting: Surface Mount
  • Status: Active
