Same model may have multiple batches, images only for reference.

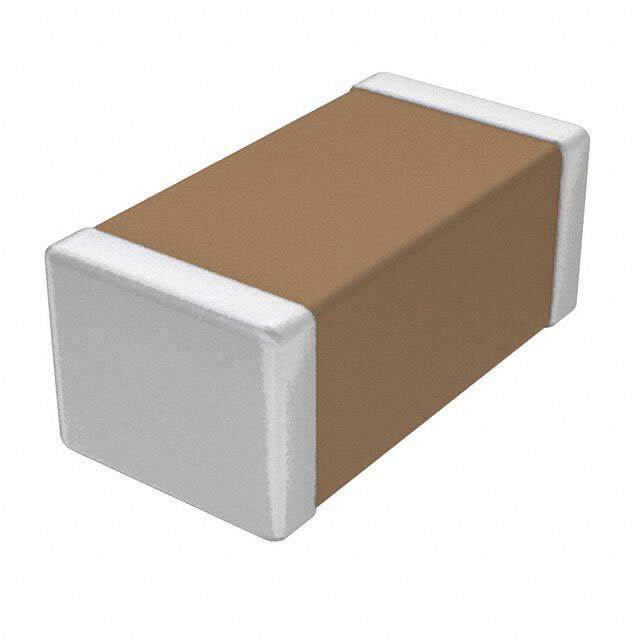

CHV1812N500100MXT Real Image
Same model may have multiple batches, images only for reference.

CHV1812N500100MXT

Part No CHV1812N500100MXT
Manufacturer CAL-CHIP ELECTRONICS, INC.
Catalog Ceramic Capacitors
Description CAP CER 10PF 500V X7R 1812 / 10 pF ±20% 500V Ceramic Capacitor X7R 1812 (4532 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr CAL-CHIP ELECTRONICS, INC.
Series CHV
Package Tape & Reel (TR)
Capacitance 10 pF
Tolerance ±20%
Voltage - Rated 500V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Dimension 0.181" L x 0.126" W (4.60mm x 3.20mm)
Thickness (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 2571-CHV1812N500100MXTTR
Standard Package 1,000
Win Source Part Number 1150524-CHV1812N500100MXT
Ultra Librarian 3D Model Ultra Librarian CHV1812N500100MXT CAD Model

Description

The CAL-CHIP CHV1812N500100MXT is a high voltage ceramic capacitor with a capacitance of 10 pF and a voltage rating of 500V manufactured by CAL-CHIP.

  • Temperature Coefficient: X7R
  • Tolerance: ±20%
  • Package: 1812 (4532 Metric)
  • Mounting Type: Surface-mounted
  • Temperature Range: -55°C to 125°C
  • Application: General purposes
  • ECCN: EAR99
