Products specifications Report Issue?

Categories Resistors
Manufacturer Caddock Electronics Inc.
Series Kool-PakMP900
Packaging Tube
Resistance (Ohms) 47
Tolerance ±1%
Power (Watts) 30W
Composition Thick Film
Features Moisture Resistant, Non-Inductive
Temperature Coefficient -20/ +80ppm/°C
Operating Temperature Range -55°C ~ 150°C
Package TO-220-2
Manufacturer Package TO-220
Dimension 0.410" L x 0.125" W (10.41mm x 3.18mm)
Height - Seated (Maximum) 0.650" (16.52mm)
Number of Terminations 2
Win Source Part Number 789216-MP930-47.0-1%
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian MP930-47.0-1% CAD Model

Description

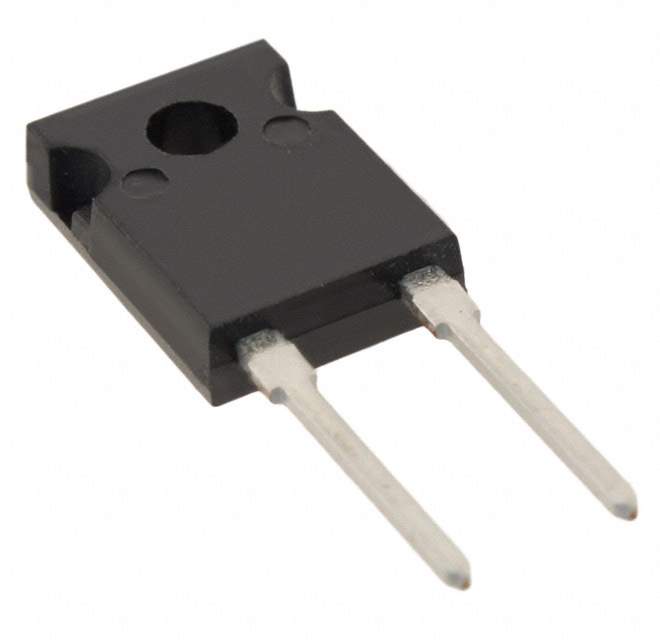

The Caddock Electronics Inc. MP930-47.0-1% is a 30W thick film resistor that comes with a TO-220-2 package and has a resistance of 47 Ohms.

  • Tolerance: ±1%
  • Temperature Coefficient: -20/+80ppm/°C
  • Features: Moisture-Resistant, Non-Inductive, Two Terminations
  • Operating Temperature Range: -55°C to 150°C
