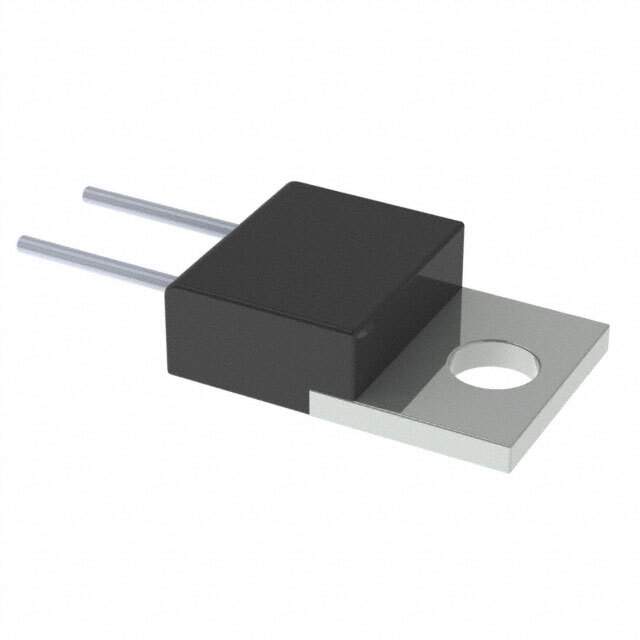

MP820-50.0-1% Real Image
Same model may have multiple batches, images only for reference.

MP820-50.0-1%

Part No MP820-50.0-1%
Manufacturer Caddock Electronics Inc.
Catalog Through Hole Resistors
Description RES 50 OHM 1% 20W TO220 / 50 Ohms ±1% 20W Through Hole Resistor TO-220-2 Full Pack Moisture Resistant, Non-Inductive Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Caddock Electronics Inc.
Series Kool-Pak®MP800
Package Tube
Resistance 50 Ohms
Tolerance ±1%
Power (Watts) 20W
Composition Thick Film
Features Moisture Resistant, Non-Inductive
Temperature Coefficient -20/ +50ppm/°C
Temperature Range - Operating -55°C ~ 175°C
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220
Dimension 0.400" L x 0.175" W (10.16mm x 4.45mm)
Height - Seated (Max) 0.590" (14.99mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names MP820-50.0F,REFMP820-50.0-1%
Standard Package 50
Win Source Part Number 1200541-MP820-50.0-1%
Ultra Librarian 3D Model Ultra Librarian MP820-50.0-1% CAD Model

Description

The Kool-Pak®MP800 MP820-50.0-1% from Caddock Electronics Inc. is a thick film resistor with a resistance of 50 Ohms.

  • Resistance: 50 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: -20/ +50ppm/°C
  • Moisture Resistant: Yes
  • Non-Inductive: Yes
  • Power: 20W
  • Package: TO-220-2 full pack package
  • Height: 0.400" L x 0.175" W (10.16mm x 4.45mm)
  • ECCN: EAR99
  • REACH: unaffected
  • HTSUS: 8533.21.0090
  • Package: tube package of 50
