Same model may have multiple batches, images only for reference.

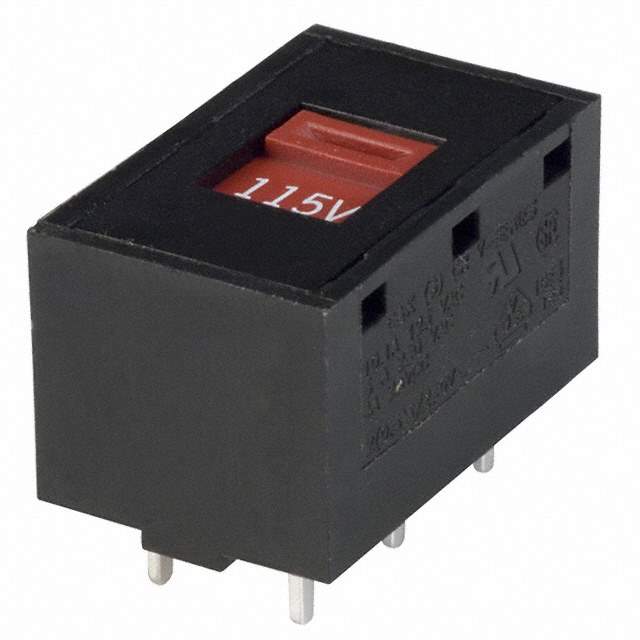

V80212MS02Q Real Image
Same model may have multiple batches, images only for reference.

V80212MS02Q

Part No V80212MS02Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 10A 125V / Slide Switch DPDT Through Hole
Datasheet
V80212MS02Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series V
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On (Line Voltage Selector)
Current Rating (Amps) 10A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Screwdriver Slot
Actuator Length Flush
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features 115V-230V Marking
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyester, Glass Filled
Electrical Life 10,000 Cycles
Base Product Number V802
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names *V80212MS02Q,CKC3001
Standard Package 1
Win Source Part Number 1052093-V80212MS02Q
Ultra Librarian 3D Model Ultra Librarian V80212MS02Q CAD Model

Description

The V80212MS02Q slide switch is a DPDT circuit with a screwdriver slot actuator type.

  • Actuator Length: Flush
  • Switch Travel: Not specified
  • Voltage Rating: 125V AC and 30V DC
  • Electrical Life: 10,000 cycles
  • Current Rating: 10A AC and 4A DC
  • Mounting: Through-hole mounting
  • Temperature Range: -30°C to 85°C
  • Series: V series
  • Marking: 115V-230V
  • Contact Material: Copper
  • Actuator Material: Polyester, glass-filled
  • Package: Bulk
