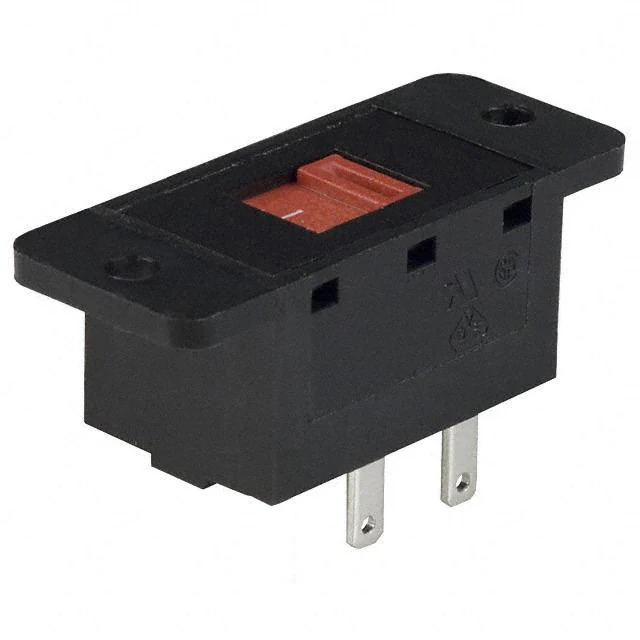

Same model may have multiple batches, images only for reference.
V70114SS05Q C&K Components
Same model may have multiple batches, images only for reference.

V70114SS05Q

Part No V70114SS05Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPST QC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series V
Package Bulk
Product Status Active
Circuit SPST
Contact Timing Not Specified
Switch Function On-Off
Current Rating (Amps) 10A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Screwdriver Slot
Actuator Length Flush
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Features O - Marking
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyester, Glass Filled
Switch Travel -
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force -
Base Product Number V701
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376289-V70114SS05Q
Ultra Librarian 3D Model Ultra Librarian V70114SS05Q CAD Model

Description

The V70114SS05Q is a slide switch from C&K's V series.

  • Mounting Type: Panel Mount
  • Actuator Type: Screwdriver Slot
  • Current Rating (AC): 10A
  • Current Rating (DC): 4A
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 30V
  • Circuit: SPST
  • Switch Function: On-Off
  • Contact Finish: Silver
  • Contact Material: Copper
  • Termination Style: Quick Connect
  • Termination Size: 0.110" (2.8mm)
  • Mechanical Life: 10,000 Cycles
  • Operating Temperature: -30°C to 85°C
