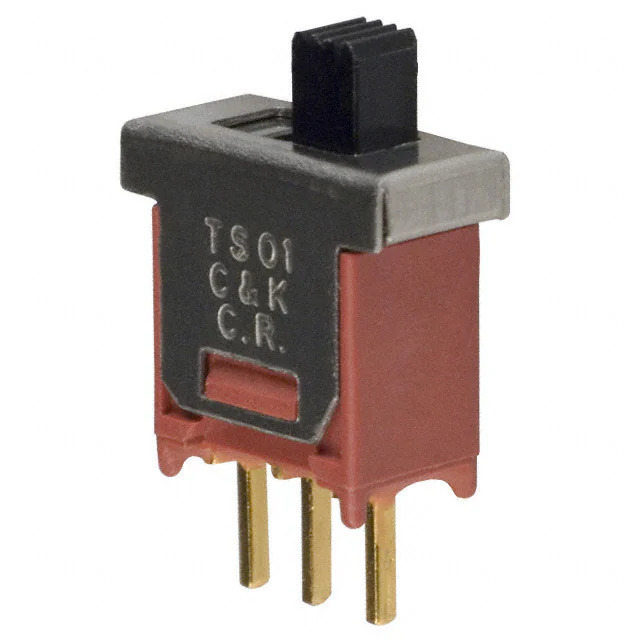

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series TS
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard
Actuator Length 3.10mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 3.05mm
Mechanical Life -
Electrical Life 60,000 Cycles
Operating Force -
Base Product Number TS01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376294-TS01CBE
Ultra Librarian 3D Model Ultra Librarian TS01CBE CAD Model

Description

The TS01CBE is a slide switch from C&K's TS series.

  • Mounting Type: Through Hole
  • Voltage Rating: 20V AC/DC
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating: 0.4VA
  • Contact Finish: Gold
  • Mechanical Life: 60,000 Cycles
  • Switch Travel: 3.05mm
  • Actuator Material: Polyamide (PA) and Nylon
  • Terminals: Epoxy Sealed
