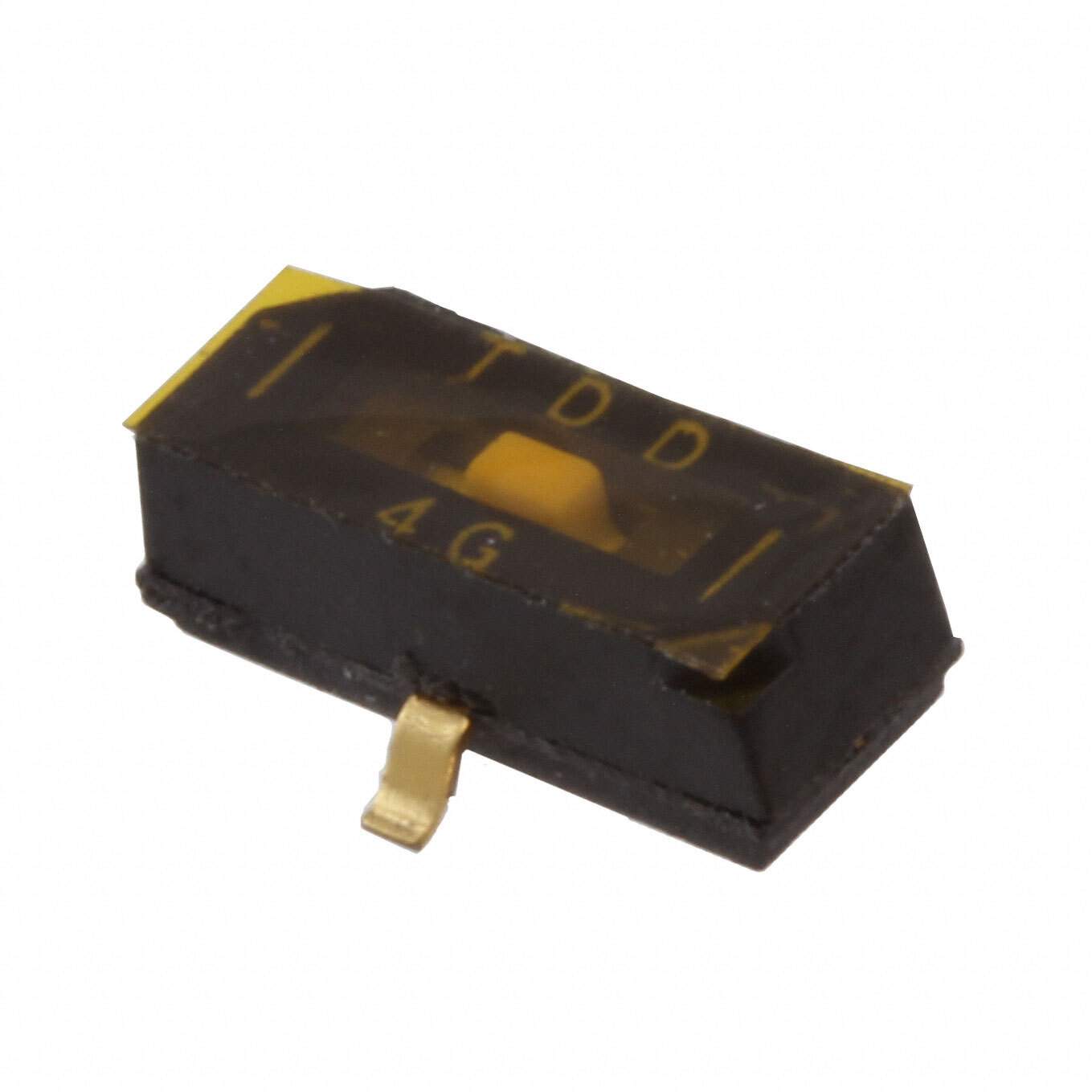

TDD01H0SB1R Real Image
Same model may have multiple batches, images only for reference.

TDD01H0SB1R

Part No TDD01H0SB1R
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPDT 25MA 24V / Dip Switch SPDT 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
TDD01H0SB1R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series TDD
Package Tape & Reel
Circuit SPDT
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.236" (6.00mm)
Mechanical Life 200 Cycles
Electrical Life 200 Cycles
Base Product Number TDD01H0S
Other Names *TDD01H0SB1R,CKN10546DKR,CKN10546CT,CKN10546TR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233688-TDD01H0SB1R
Ultra Librarian 3D Model Ultra Librarian TDD01H0SB1R CAD Model

Description

The TDD DIP switch is a high-quality switch designed for use in a variety of electronic devices.

  • Manufacturer:
  • Actuator: Slide
  • Voltage Rating: 24V DC
  • Circuit Configuration: SPDT
  • Number of Positions: 2
  • Termination Style: Gull wing
  • Mounting: SMD (SMT)
  • Temperature Range: -30°C to 85°C
  • Package: Tape and reel package of 1000
