Same model may have multiple batches, images only for reference.

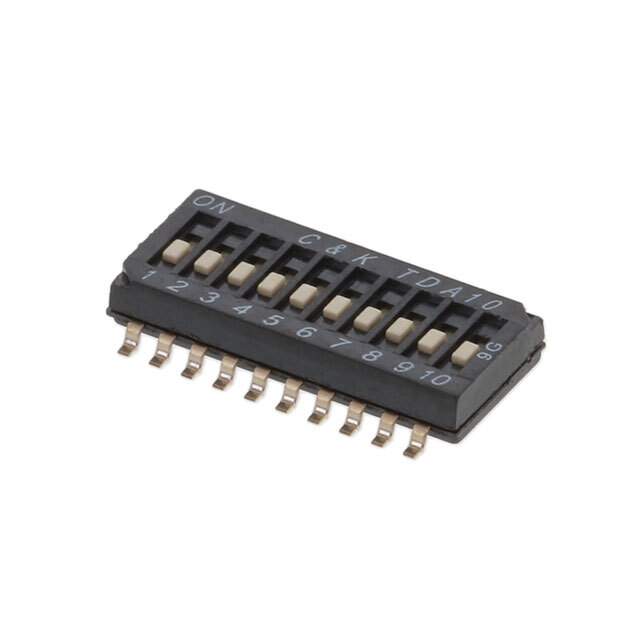

TDA10H0SB1 Real Image
Same model may have multiple batches, images only for reference.

TDA10H0SB1

Part No TDA10H0SB1
Manufacturer C&K Components
Catalog DIP Switches
Description Ultra-miniature Surface Mount Half-pitch DIP Switches | SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.544" (13.82mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1265848-TDA10H0SB1
Manufacturer Homepage www.ittcannon.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TDA10H0SB1 CAD Model

Description

The C&K TDA10H0SB1 is a surface mount slide switch with a compact design and a tape seal feature.

  • Circuit: Single Pole Single Throw
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.091 inches
  • Length: 0.544 inches
  • Pitch: 0.050 inches half
  • Material: Polyphenylene Sulfide (PPS)
  • Termination Style: Gull-Wing
  • Contact Finish: Gold
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Actuator Type: Standard Slide
  • Actuator Levels: Flush and Recessed
  • Washable: Yes
  • Category: Switches
