Same model may have multiple batches, images only for reference.

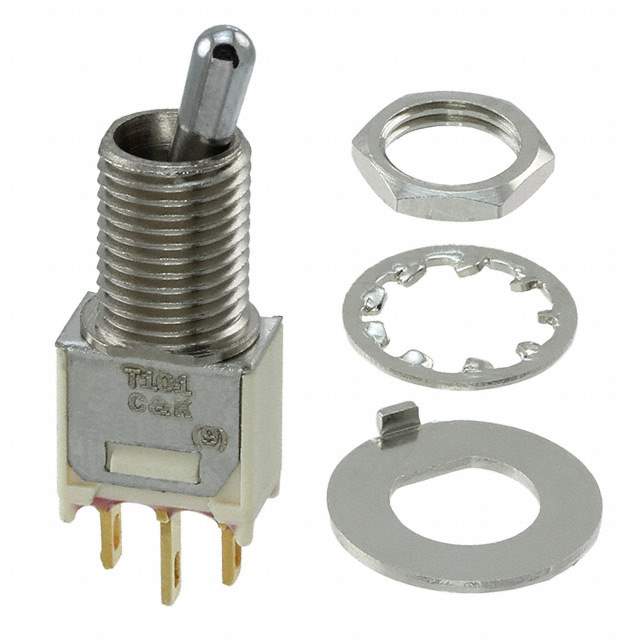

T101LTZGE Real Image
Same model may have multiple batches, images only for reference.

T101LTZGE

Part No T101LTZGE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 3A 120V / Toggle Switch SPDT Panel Mount
Datasheet
T101LTZGE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series T
Package Tray
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 5.08mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 60,000 Cycles
Base Product Number T101
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-T101LTZGE,-T101LTZGE,*T101LTZGE,T101LTZGE-ND,CKN11472
Standard Package 1
Win Source Part Number 1072975-T101LTZGE
Ultra Librarian 3D Model Ultra Librarian T101LTZGE CAD Model

Description

The T101LTZGE is a SPDT toggle switch that is designed for use in a variety of electronic applications and is manufactured by C&K.

  • Maximum Voltage Rating: 120 VAC and 28 VDC
  • Maximum Current Rating: 3A (AC/DC)
