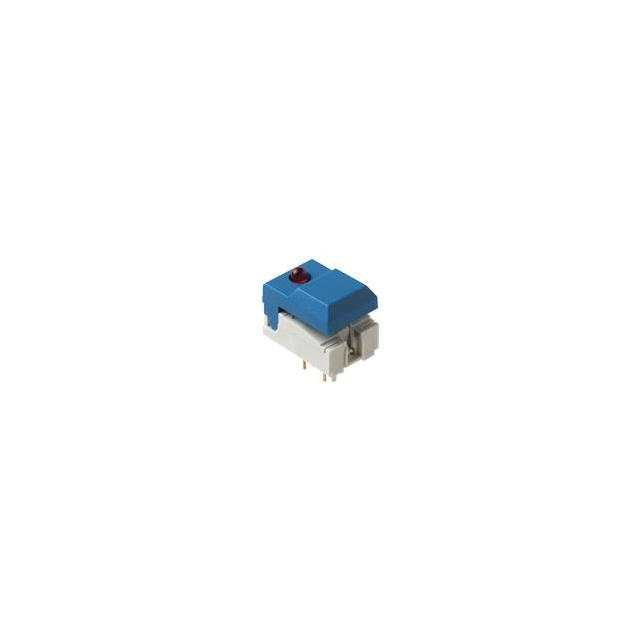

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series DIGITAST
Package Bulk
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Red
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 500,000 Cycles
Base Product Number SETLB
Other Names 752010-5000,SETL BK RD AU EE
Standard Package 70
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1233370-SETLBKRDAUEE
Ultra Librarian 3D Model Ultra Librarian SETLBKRDAUEE CAD Model

Description

The SETLBKRDAUEE illuminated keyswitch from C&K is an SPDT switch with an on-on switch function.

  • Circuit: SPDT
  • Switch Function: on-on
  • Actuator Type: square, button
  • Actuator/Cap Color: black
  • Mounting Type: through hole
  • Temperature Range: -25°C ~ 85°C
  • Voltage Rating: 24 V DC
  • Current Rating: 10mA (DC)
  • Electrical Life: 500,000 cycles
  • Package: Bulk
  • REACH: Unaffected
  • RoHS Status: Not Applicable
