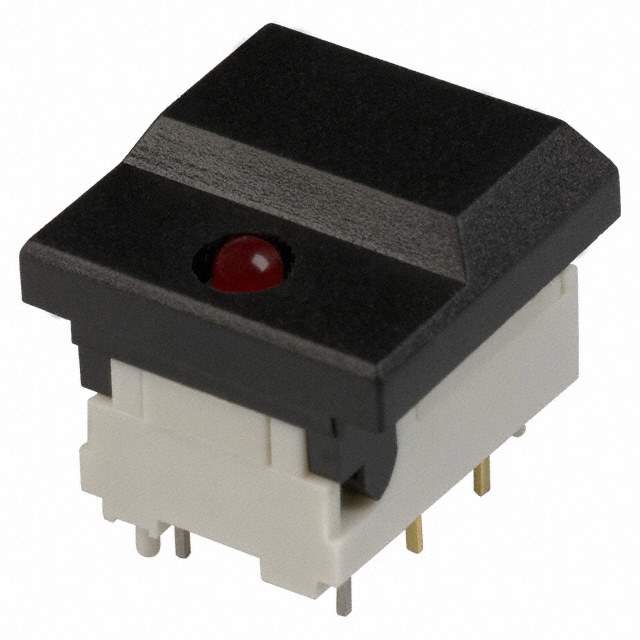

SETL BK RD 7.62 AU EE Real Image
Same model may have multiple batches, images only for reference.

SETL BK RD 7.62 AU EE

Part No SETL BK RD 7.62 AU EE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.01A 24V / Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole
Datasheet
SETL BK RD 7.62 AU EE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series DIGITAST
Package Tray
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Red
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 500,000 Cycles
Base Product Number SETL
Other Names SETLBKRD7.62AUEE,*SE T L BK RD 7.62 AU EE,*SETL BK RD 7.62 AU EE,752010-5003,*SE T L BK RD 7.62 A,401-1126,200851
Standard Package 70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1233300-SETL BK RD 7.62 AU EE
Ultra Librarian 3D Model Ultra Librarian SETL BK RD 7.62 AU EE CAD Model

Description

The C&K electronic component with Win Source Part Number 1233300-SETL BK RD 7.62 AU EE is a DIGITAST series illuminated keyswitch with a circuit of SPDT and a switch function of On-On.

  • Voltage Rating: 24V DC
  • Current Rating: 10mA (DC)
  • Mechanical Life: 500,000 cycles
  • Temperature Range: -25°C ~ 85°C
