Same model may have multiple batches, images only for reference.

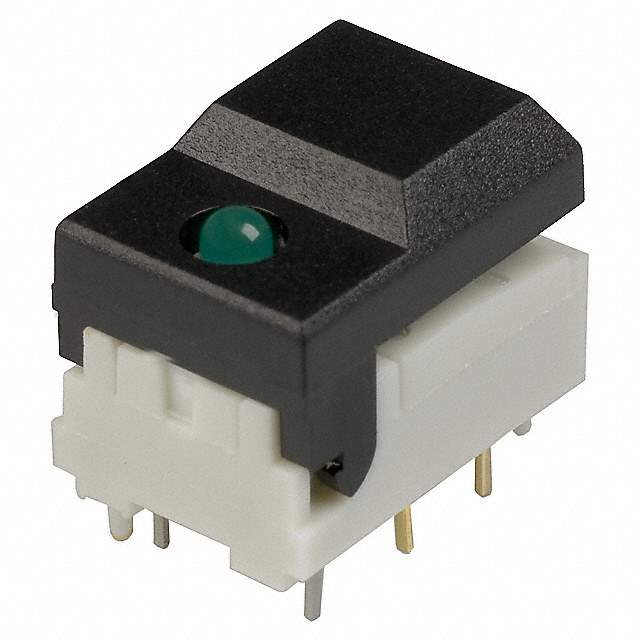

SERL BK GN 7.62 AU EE Real Image
Same model may have multiple batches, images only for reference.

SERL BK GN 7.62 AU EE

Part No SERL BK GN 7.62 AU EE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.01A 24V / Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole
Datasheet
SERL BK GN 7.62 AU EE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series DIGITAST
Package Tray
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Green
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 500,000 Cycles
Base Product Number SERL
Other Names *SERL BK GN 7.62 AU EE,200744,CKN9805,-SERL BK GN 7.62 AU EE,CKN9805,*SERLBKGN7.62AUEE,SERLBKGN7.62AUEE,752010-2004,1889-SERL BK GN 7.62 AU EE,-SERLBKGN7.62AUEE,401-1669,*752010-2004,1889-SERLBKGN7.62AUEE,-SERL BK GN 7.62 AU EE,1889-SERL BK GN 7.62 AU EE
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1233297-SERL BK GN 7.62 AU EE
Ultra Librarian 3D Model Ultra Librarian SERL BK GN 7.62 AU EE CAD Model

Description

The SERL BK GN 7.62 AU EE is an illuminated keyswitch from C&K's DIGITAST series.

  • Circuit: SPDT
  • Switch Function: on-on
  • Voltage Rating: 24V DC
  • Current: 10mA DC
  • Electrical Life: 500,000 cycles
  • Actuator Type: Square, button
  • Mounting: Through-hole
  • Temperature Range: -25°C to 85°C
  • Actuator Marking: No marking
  • Actuator/Cap Color: Black
  • Standard Package: 500
  • Illumination Type: LED, Green
