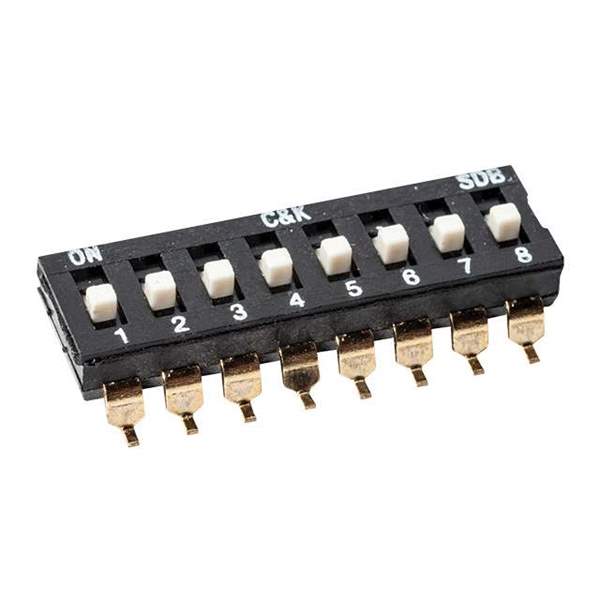

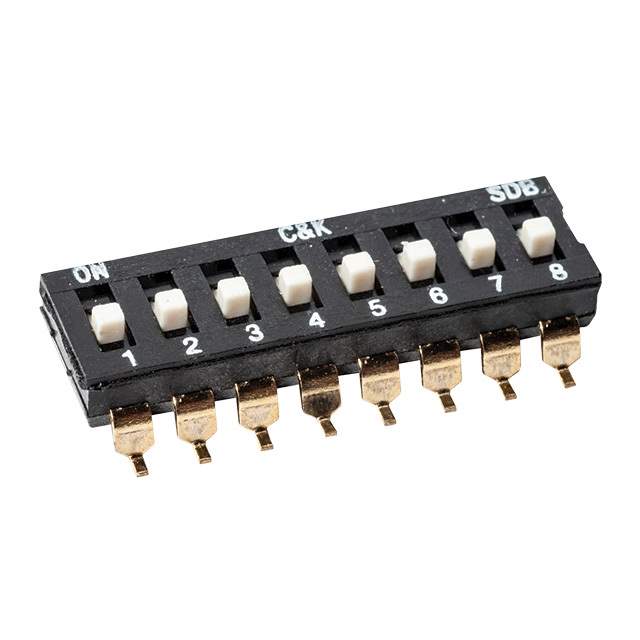

SDB08H1SBD Real Image
Same model may have multiple batches, images only for reference.

SDB08H1SBD

Part No SDB08H1SBD
Manufacturer C&K Components
Catalog DIP Switches
Description DIP 8P EXTENDED ACT. GOLD CONTAC / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDB
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.189" (4.80mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA46), Nylon 4/6
Length 0.843" (21.41mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN12005
Standard Package 22
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233706-SDB08H1SBD
Ultra Librarian 3D Model Ultra Librarian SDB08H1SBD CAD Model

Description

The C&K SDB08H1SBD is a DIP Switch with a win source part number of 1233706.

  • Manufacturer: C&K
  • Win Source Part Number: 1233706
  • Series: SDB
  • Positions: 8
  • Pitch: 0.100" (2.54mm), Full
  • Termination: Gull wing
  • Contact Finish: Gold
  • Package: Tube
  • Contact Material: Phosphor bronze
  • Voltage Rating: 24VDC
  • Height Above Board: 0.189" (4.80mm)
  • Length: 0.843" (21.41mm)
  • Standard Package: 22
  • Mounting: SMD (SMT)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.9065
  • Obsolete: Yes
  • Other Names: CKN12005
