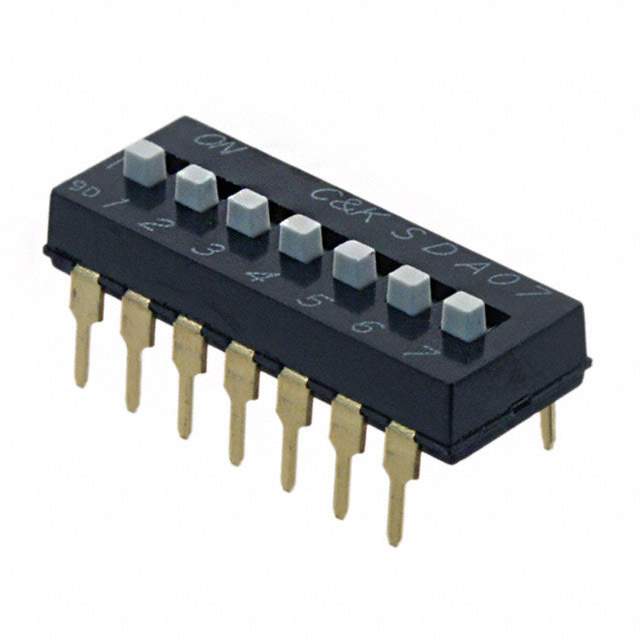

SDA07H1BD Real Image
Same model may have multiple batches, images only for reference.

SDA07H1BD

Part No SDA07H1BD
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 7 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA07H1BD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 7
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.228" (5.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.778" (19.76mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA07H
Other Names *SDA07H1BD,2266-SDA07H1BD,CKN6085
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233758-SDA07H1BD
Ultra Librarian 3D Model Ultra Librarian SDA07H1BD CAD Model

Description

The SDA07H1BD is a DIP switch from C&K.

  • Positions: 7-position
  • Circuit: SPST switch
  • Pitch: 2.54mm
  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Actuator: Raised actuator
  • Mounting: Soldered to PCB
  • Operating Temperature Range: -40°C to +85°C
