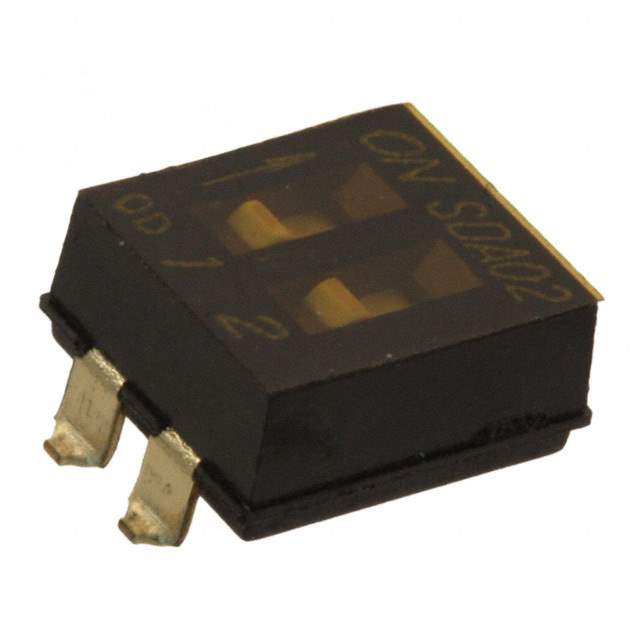

SDA02H0SBR Real Image
Same model may have multiple batches, images only for reference.

SDA02H0SBR

Part No SDA02H0SBR
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
SDA02H0SBR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 18 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer C&K Components
Series SDA
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name SDA02H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number CKN9491TR, 2266-SDA02H0SBR, CKN9491CT, CKN9491DKR, *SDA02H0SBR
Quantity per package 750
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933211-SDA02H0SBR
Ultra Librarian 3D Model Ultra Librarian SDA02H0SBR CAD Model

Description

The C&K Components switch with part number SDA02H0SBR is a dip switch SPST position surface mount slide (standard) actuator component. It has a maximum operating temperature range of -40°C ~ 85°C and a current rating of 25mA @ 24VDC.

  • Operating Temperature Range: -40°C ~ 85°C
  • Current Rating: 25mA @ 24VDC
  • Packaging: Reel - TR
  • Quantity per Package: 750
  • Family Name: SDA02H
  • Category: Switches
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 18 weeks
  • REACH Status: Unaffected
  • HTSUS: 8536.50.9065
