Same model may have multiple batches, images only for reference.

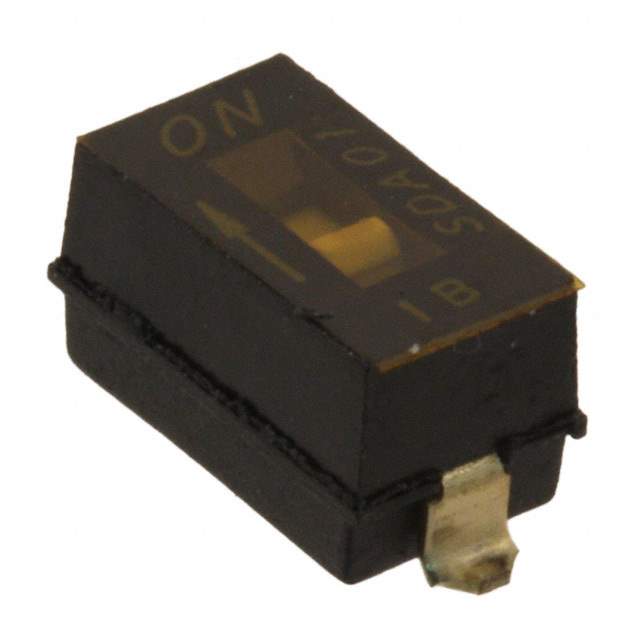

SDA01H0SB Real Image
Same model may have multiple batches, images only for reference.

SDA01H0SB

Part No SDA01H0SB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 1 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA01H0SB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 1
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.178" (4.52mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA01H
Other Names *SDA01H0SB,-SDA01H0SB,CKN10914,SDA01H0SB
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233783-SDA01H0SB
Ultra Librarian 3D Model Ultra Librarian SDA01H0SB CAD Model

Description

The SDA01H0SB is a DIP switch from C&K's SDA series, with one position and a pitch of 0.100" (2.54mm).

  • Manufacturer: C&K
  • Series: SDA
  • Positions: 1
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Surface Mount
  • Termination: Gull-Wing
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Current Rating: 25mA
  • Actuator Type: Slide (Standard)
  • Washable: Yes
  • Temperature Range: -40°C ~ 85°C
  • Electrical Life: 1,000 Cycles
