Same model may have multiple batches, images only for reference.

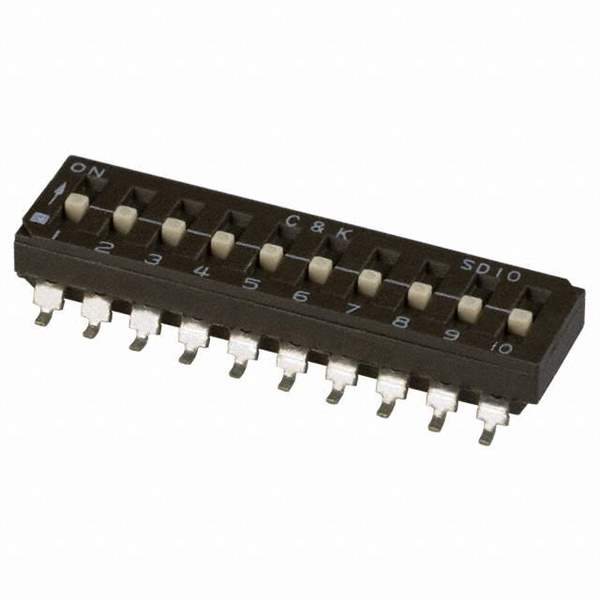

SD10H1SK Real Image
Same model may have multiple batches, images only for reference.

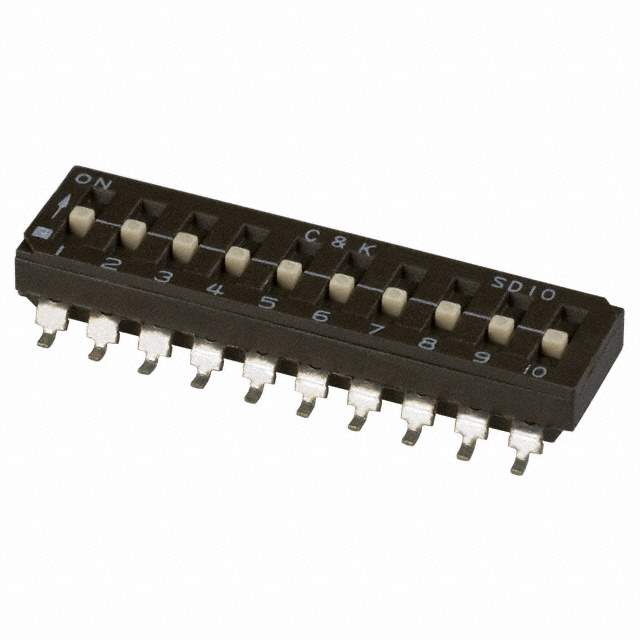

SD10H1SK

Part No SD10H1SK
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.180" (4.57mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 1.058" (26.87mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Other Names CKN6038,*SD10H1SK,SD10H1SK
Standard Package 20
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233800-SD10H1SK
Ultra Librarian 3D Model Ultra Librarian SD10H1SK CAD Model

Description

The C&K SD10H1SK is a gull wing type DIP switch with 10 positions and a pitch of 0.100" (2.54mm).

  • Voltage Rating: 25VDC
  • Current Rating: 100mA
  • Contact Finish: Gold
  • Body Material: Polyphthalamide (PPA)
  • Actuator Type: Slide (Standard)
  • Actuator Level: Raised
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Package: Tube
  • Standard Package: 20
  • Product Status: Obsolete
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • RoHS Compliant: No
  • Other Names: CKN6038
  • Alternative Part Numbers: *SD10H1SK and SD10H1SK
