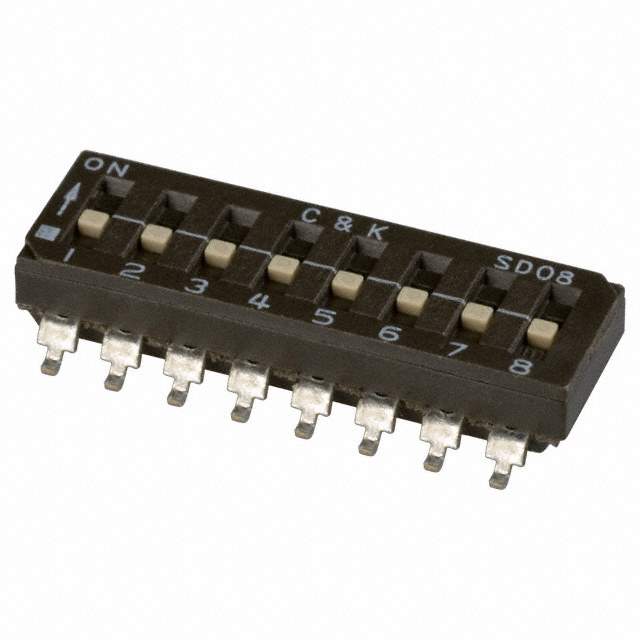

SD08H1SBD

Part No SD08H1SBD
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD08H1SBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.165" (4.20mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.858" (21.80mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD08H1
Other Names 2266-SD08H1SBD,*SD08H1SBD,CKN6130
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233806-SD08H1SBD
Ultra Librarian 3D Model Ultra Librarian SD08H1SBD CAD Model

Description

The SD08H1SBD is an 8-position DIP switch from the SD series of switches by C&K.

  • Circuit: SPST
  • Number of Positions: 8
  • Actuator Type: Slide
  • Actuator Level: Raised
  • Voltage Rating: 25VDC
  • Current Rating: 100mA
  • Termination Style: Gull Wing
  • Pitch: 0.100" (2.54mm)
  • Height Above Board: 0.165" (4.20mm)
  • Length: 0.858" (21.80mm)
  • Mechanical Life: 2,000 cycles
  • Electrical Life: 2,000 cycles
  • Body Material: Polyphthalamide (PPA)
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Washable: No
  • Operating Temperature: -40°C to 85°C
  • Package: Tube
  • ECCN: EAR99
