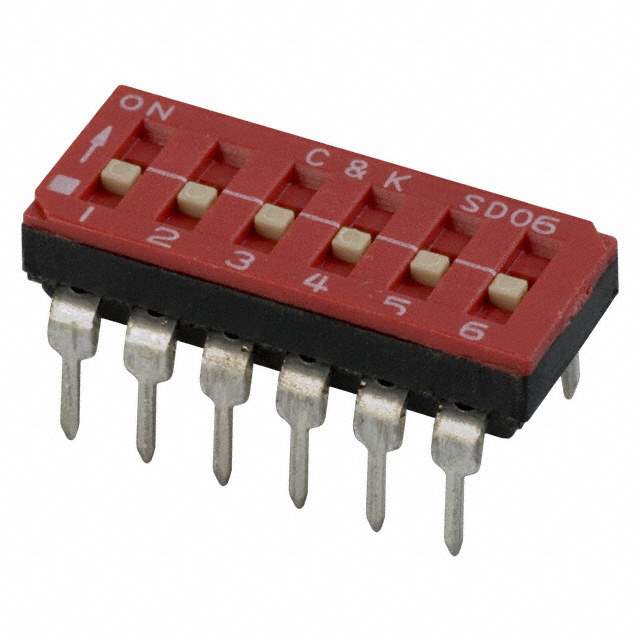

SD06H0B Real Image
Same model may have multiple batches, images only for reference.

SD06H0B

Part No SD06H0B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD06H0B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 6
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.178" (4.52mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.658" (16.71mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD06H0
Other Names *SD06H0B,2266-SD06H0B,CKN6120
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233811-SD06H0B
Ultra Librarian 3D Model Ultra Librarian SD06H0B CAD Model

Description

The SD series DIP switch is a high-quality switch designed for use in electronic circuits.

  • Actuator Type: Slide (standard)
  • Mounting Type: Through-Hole
  • Circuit: SPST
  • Tape Seal: Yes
  • Contact Finish: Gold
  • Package: Tube
  • Temperature Range: -40°C ~ 85°C
  • REACH: Unaffected
  • Current Rating: 100mA
  • Voltage Rating: 25VDC
