Same model may have multiple batches, images only for reference.

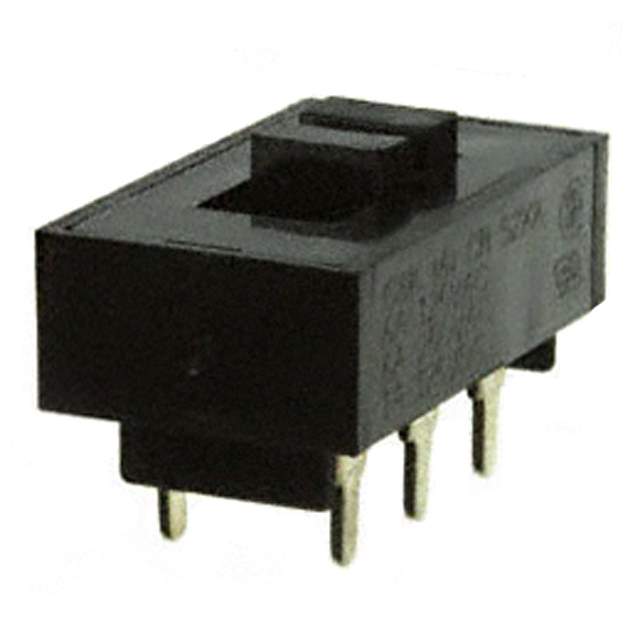

S202131MS02Q Real Image
Same model may have multiple batches, images only for reference.

S202131MS02Q

Part No S202131MS02Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 6A 125V  /  Slide Switch DPDT Through Hole
Datasheet
S202131MS02Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On (Line Voltage Selector)
Current Rating (Amps) 6A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Screwdriver Slot
Actuator Length 1.27mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features No Marking
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S202131
Other Names *S202131MS02Q,CKC5116,2266-S202131MS02Q,S202131MS02Q
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233183-S202131MS02Q
Ultra Librarian 3D Model Ultra Librarian S202131MS02Q CAD Model

Description

The S series slide switch from C&K is a DPDT On-On (Line Voltage Selector) switch with a screwdriver slot actuator.

  • Voltage Rating: 125V AC and DC
  • Current Rating: 6A (AC) and 1A (DC)
  • Circuit: DPDT
  • Contact Finish: Silver
  • Actuator Material: Polyamide (PA66), Nylon 6/6
  • Contact Material: Copper
  • Mechanical Life: 10,000 cycles
  • Mounting Type: Through Hole
  • Operating Temperature: -30°C to 65°C
  • Package: Bulk
