Same model may have multiple batches, images only for reference.

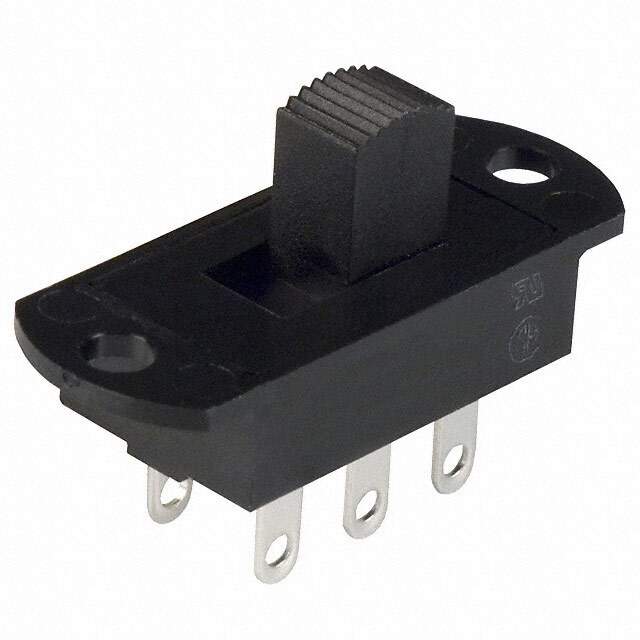

S202091SS03Q Real Image
Same model may have multiple batches, images only for reference.

S202091SS03Q

Part No S202091SS03Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 6A 125V / Slide Switch DPDT Panel Mount
Datasheet
S202091SS03Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 6A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Standard
Actuator Length 6.35mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S202091
Other Names *S202091SS03Q,CKN11104,-S202091SS03Q,S202091SS03Q
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233169-S202091SS03Q
Ultra Librarian 3D Model Ultra Librarian S202091SS03Q CAD Model

Description

The C&K slide switch is part of the S series and has a DPDT circuit.

  • Series: S series
  • Circuit: DPDT
  • Contact Finish: Silver
  • Contact Material: Copper
  • Voltage Rating: 125V for both AC and DC
  • Current Rating: 6A (AC) and 1A (DC)
  • Electrical Life: 10,000 cycles
  • Standard Package: 1
  • Mounting: Panel Mounted
  • Temperature Range: -30°C and 65°C
  • REACH: REACH unaffected
  • ECCN: EAR99
  • Package: Bulk
